RTL8139D(L)

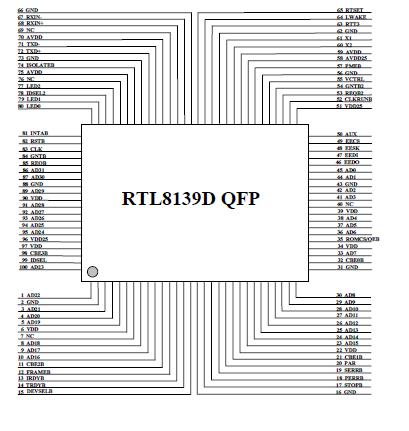

` 100 pin QFP/LQFP
` Integrated Fast Ethernet MAC, Physical chip and transceiver in one chip
` 10 Mb/s and 100 Mb/s operation
` Supports 10 Mb/s and 100 Mb/s N-way Auto-negotiation operation
` Supports PCI multi-function capabilities
` PCI local bus single-chip Fast Ethernet controller
    Compliant to PCI Revision 2.2
    Supports PCI clock 16.75MHz-40MHz
    Supports PCI target fast back-to-back transaction
    Provides PCI bus master data transfers and PCI
    memory space or I/O space mapped data transfers
    of RTL8139D(L)'s operational registers
    Supports PCI VPD (Vital Product Data)
    Supports ACPI, PCI power management
    Supports PCI multi-function to incorporate with other PCI master device
`Supports 25MHz crystal or 25MHz OSC as the internal
   clock source. The frequency deviation of either crystal or
   OSC must be within 50 PPM.
`Compliant to PC99 and PC2001 standards
` Supports Wake-On-LAN function and remote wake-up
   (Magic Packet*, LinkChg and Microsoft® wake-up frame)
` Supports 4 Wake-On-LAN (WOL) signals (active high,
   active low, positive pulse, and negative pulse)
`Supports auxiliary power-on internal reset, to be ready
   for remote wake-up when main power remains off
`Supports auxiliary power auto-detect, and sets the
   related capability of power management registers in PCI
   configuration space
` Includes a programmable, PCI burst size and early Tx/Rx threshold
` Supports a 32-bit general-purpose timer with the
    external PCI clock as clock source, to generate timer-interrupt
` Contains two large (2Kbyte) independent receive and transmit FIFO’s
` Advanced power saving mode when LAN function or wakeup function is not used
` Uses 93C46 (64*16-bit EEPROM) to store resource configuration, ID parameter, and VPD data
` Supports LED pins for various network activity indications
` Supports loopback capability
` Half/Full duplex capability
` Supports Full Duplex Flow Control (IEEE 802.3x)
` 2.5/3.3V power supply with 5V tolerant I/Os
` Up to 128K byte Boot ROM interface for both EPROM and Flash memory is supported
` 0.25u CMOS process
* Third-party brands and names are the property of their respective owners.

The Realtek RTL8139D(L) is a highly integrated and cost-effective single-chip Fast Ethernet controller that provides 32-bit performance, PCI bus master capability, and full compliance with IEEE 802.3u 100Base-T specifications and IEEE 802.3x Full Duplex Flow Control. It also supports Advanced Configuration Power management Interface (ACPI), PCI power management for modern operating systems that are capable of Operating System Directed Power anagement (OSPM) to achieve the most efficient power management possible. The RTL8139D(L) also supports shared Boot ROM pins & clock run pin.

In addition to the ACPI feature, the RTL8139D(L) also supports remote wake-up (including AMD Magic Packet, LinkChg, and Microsoft® wake-up frame) in both ACPI and APM environments. The RTL8139D(L) is capable of performing an internal reset through the application of auxiliary power. When auxiliary power is applied and the main power remains off, the RTL8139D(L) is ready and is waiting for the Magic Packet or Link Change to wake the system up. Also, the LWAKE pin provides 4 different output signals including active high, active low, positive pulse, and negative pulse. The versatility of the RTL8139D(L) LWAKE pin provides motherboards with Wake-On-LAN (WOL) functionality.

The RTL8139D(L) also supports Analog Auto-Power-down, that is, the analog part of the RTL8139D(L) can be shut down temporarily according to user requirement or when the RTL8139D(L) is in a power down state with the wakeup function disabled. In addition, when the analog part is shut down and the IsolateB pin is low (i.e. the main power is off), then both the analog and digital parts stop functioning and the power consumption of the RTL8139D(L) will be negligible. The RTL8139D(L) also supports an auxiliary power auto-detect function, and will auto-configure related bits of their own PCI power management
registers in PCI configuration space.

PCI Vital Product Data (VPD) is also supported to provide the information that uniquely identifies hardware (Ex., the OEM brand name of RTL8139D(L) LAN card). The information may consist of part number, serial number, and other detailed information. To provide cost down support, the RTL8139D(L) is capable of using a 25MHz crystal or OSC as its internal clock source. The RTL8139D(L) keeps network maintenance costs low and eliminates usage barriers. It is the easiest way to upgrade a network from 10 to 100Mbps. It also supports full-duplex operation, making 200Mbps bandwidth possible at no additional cost. To
improve compatibility with other brands' products, the RTL8139D(L) is also capable of receiving packets with InterFrameGap no less than 40 Bit-Time. The RTL8139D(L) is highly integrated and requires no "glue" logic or external memory.

The RTL8139D(L) provides a flexible multi-function mode (Realtek patent pending) to incorporate other PCI master devices, like a hardware modem. When in multi-function mode, the RTL8139D(L) acts as an arbiter to distinguish LAN signals from those of other devices. The second device recognizes no difference between being connected to the RTL8139D or a regular PCI bus. The RTL8139D(L) includes a PCI and Expansion Memory Share Interface (Realtek's patent pending) for a boot ROM and can be used in diskless workstations, providing maximum network security and ease of management.
