RTD2011

Features: General`Integrated Spread-Spectrum DCLK PLL.`Integrated 8-bit triple-channel 140MHz ADC/PLL`Integrated programmable timing controller`Embedded fully functional OSD support multi-language`Embedded DDC support DDC1, DDC2B, DDC/CI`Embedded 3 programmable PWM`Zoom scaling up and down`Embedde...

product image

RTD2011 Picture
See larger image
SeekIC No. : 004480085 Detail

RTD2011: Features: General`Integrated Spread-Spectrum DCLK PLL.`Integrated 8-bit triple-channel 140MHz ADC/PLL`Integrated programmable timing controller`Embedded fully functional OSD support multi-language`E...

RTD2011 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RTD2011
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

General
`Integrated Spread-Spectrum DCLK PLL.
`Integrated 8-bit triple-channel 140MHz ADC/PLL
`Integrated programmable timing controller
`Embedded fully functional OSD support multi-language
`Embedded DDC support DDC1, DDC2B, DDC/CI
`Embedded 3 programmable PWM
`Zoom scaling up and down
`Embedded Pattern Generator
`No external memory required.
`Require only one crystal to generate all timing
Analog RGB Input Interface
`Support up to 140MHz (SXGA@ 75Hz)
`Support Sync On Green (SOG) and de-composite sync modes
`On-chip high-performance PLLs
Digital Input Interface
`Support 8-bit video (ITU 656) format input
`Built-in YUV to RGB color space converter & de-interlace
Auto Detection /Auto Calibration
`Input format detection
`Compatibility with standard VESA mode and support user-defined mode
`Smart engine for Phase and Image position calibration
Scaling
`Fully programmable zoom ratios
`Independent horizontal/vertical scaling
`Advanced zoom algorithm provides high image quality
`Sharpness/Smooth filter enhancement
Color Processor
`Digital brightness and contrast adjustments
`sRGB compliance
`Gamma correction
`Dithering logic for 18-bit panel color depth
Output Interface
`Built-in display timing generator and fully programmable
`1 and 2-pixel/clock panel support and up to 140MHz
`Pin swap, odd/even swap and red/blue group swap.
`Programmable TCON function support
`RSDS (Reduced Swing Differential Signaling) data bus
`Reduced EMI and Power saving feature
Host Interface
`Support 3 pins MCU serial bus interface
Embedded OSD
`12*18 dot font per character.
`Embedded 256 characters and symbols including 16 multi-color symbols.
`User's font ram, which make customer can program 128 special symbols.
`32 programmable color font
`7 background color and 8 character color.
`Programmable width and height control.
`4 background window.
`Selectable shadow color for windows and characters.
`Intensity, blinking effect.
`Fade-in/out effect.
`Frame shadowing and independent row shadowing.
`Frame bordering and independent row bordering.
`3 channels 8 bits PWM output, and selectable PWM clock frequency.
`Row-to-Row spacing to maintain constant display height.
`Window alpha-blending effect.
Power & Technology
`2.5V/3.3V power supplier
`0.25um CMOS process; 128-pinPQFP package


Pinout

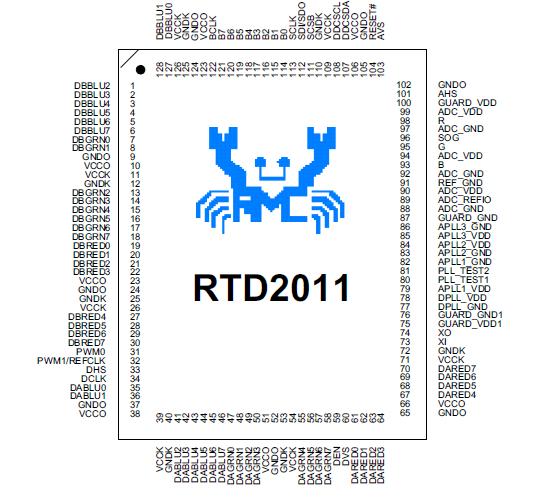

Connection Diagram
