Features:

Very High Efficiency Over 90% of Battery Life
Support up to 4 WLEDs
Support up to 120mA Output Current
Soft Start Function
Short Circuit Protection Function
Three Charge Pump Mode: x1, x1.5, x2
250k/1MHz Fixed Frequency Oscillator
RoHS Compliant and 100% Lead (Pb)-Free



Application

Mobile Phone
White LED Backlighting
Camera Flash LED Lighting


Pinout

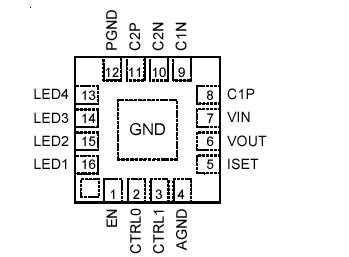

Connection Diagram


Specifications

Input Voltage ----------------------------------------------------------------------------−0.3 to 6V
Output Voltage --------------------------------------------------------------------------−0.3 to 6V
Power Dissipation, PD @ TA = 25°C QFN−16L 3X3 ------------------------------------1.47W
Package Thermal Resistance (Note 4) QFN−16L 3x3, JA -------------------------68°C/W
Junction Temperature ----------------------------------------------------------------------150°C
Lead Temperature (Soldering, 10 sec.) -------------------------------------------------260°C
Junction Temperature Range-------------------------------------------------−40°C to 125°C
Storage Temperature Range -------------------------------------------------−65°C to 150°C
ESD Susceptibility (Note 2) HBM (Human Body Mode) -----------------------------------2kV
MM (Machine Mode) ---------------------------------------------------------------------------200V


Description

The RT9362/A is a high efficiency charge pump white LED driver. It supports up to 4 white LEDs with regulated constant current for uniform intensity. The RT9362/A maintains the highest efficiency by utilizing a x1/x1.5/x2 fractional charge pump and low dropout current regulators. User can easily configure each LED current up 30mA by an external resistor. Two digital inputs can be programmable to control white LED On/Off. LED dimming can be achieved by applying a PWM signal to the digital control signals.

The operating voltage range is 2.5V to 5.5V. Internal softstart circuitry effectively reduces the in-rush current both while start-up and mode change. RT9362/A also provides comprehensive protections such short circuit protection and over-temperature protection. The load is disconnected from VIN while shutdown and the shutdown current is less than 1uA. RT9362/A is available in a QFN-16L 3x3 package.
