RT9205A

Features: · Operates at 5V· 0.8V Internal Reference· Drives Two N-Channel MOSFET· Voltage Mode PWM Control· Fast Transient Response· Fixed 300kHz Oscillator Frequency· Dynamic 0 to 100%Duty Cycle· Internal PWM Loop Compensation· Internal Soft-Start· AdaptiveNon-Overlapping Gate Driver· Over-Voltag...

product image

RT9205A Picture
See larger image
SeekIC No. : 004479900 Detail

RT9205A: Features: · Operates at 5V· 0.8V Internal Reference· Drives Two N-Channel MOSFET· Voltage Mode PWM Control· Fast Transient Response· Fixed 300kHz Oscillator Frequency· Dynamic 0 to 100%Duty Cycle· I...

RT9205A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RT9205A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operates at 5V
· 0.8V Internal Reference
· Drives Two N-Channel MOSFET
· Voltage Mode PWM Control
· Fast Transient Response
· Fixed 300kHz Oscillator Frequency
· Dynamic 0 to 100%Duty Cycle
· Internal PWM Loop Compensation
· Internal Soft-Start
· AdaptiveNon-Overlapping Gate Driver
· Over-Voltage Protection Uses LowerMOSFET
·RoHS Compliant and 100%Lead (Pb)-Free


Application

· PCMotherboard
· Cable Modems, Set-Top-Box, and XDSLModems
· DSP and Core Communications Processor Supplies
· Memory Power Supplies
· Personal Computer Peripherals
· Industrial Power Supplies
· 5V Input DC-DC Regulators
· Low Voltage Distributed Power Supplies
· Graphic Cards


Pinout

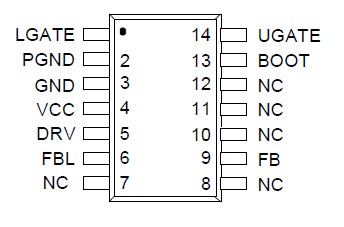

Connection Diagram


Specifications

` Supply Voltage VCC ----------------------------------------------------------------------7V
` BOOT & UGATE toGND ----------------------------------------------------------------- 19V
`Input, Output or I/O Voltage ------------------------------------------------GND-0.3V to 7V
` Package Thermal Resistance
    SOP-14, JA ----------------------------------------------------------------------160°C/W
` Ambient Temperature Range ---------------------------------------------- 0°C to +70°C
` Junction Temperature Range --------------------------------------------40°C to +125°C
` Storage Temperature Range------------------------------------------- -65°C to +150°C
` Lead Temperature (Soldering, 10 sec.) ---------------------------------------------260°C


Description

TheRT9205/Ais a dual-output power controllers designed for high performance graphics cards and personal computers. The IC integrates a synchronous buck controller, a linear controller and protection functions into a small 14-pin package.

The RT9205/A uses an internal compensated voltage mode PWMcontrol for simplying design.An internal 0.8V reference allows the output voltage to be precisely regulated tomeet lowoutput voltage requirement.A fixed 300kHz oscillation frequency reduces the component size for saving board area.

The RT9205/A also features over voltage protection (OVP) and under voltage lock-out (UVLO).
