Product Details

Description



Features:

`Low Quiescent Current (Typically 70A)
`Wide Operating Voltage Ranges : 2.8V to 5.5V for RT9006A
`Wide Operating Voltage Ranges : 2.5V to 5.5V for RT9006B
`Ultra-Fast Transient Response
`Tight Load and Line Regulation
`Current Limiting Protection
`Thermal Shutdown Protection
`Only low-ESR Ceramic Capacitors Required for Stability
`RoHS Compliant and 100% Lead (Pb)-Free


Application

·CD/DVD-ROM, CD/RW
·Wireless LAN Card/Keyboard/Mouse
·Battery-Powered Equipment
·XDSL Router


Pinout

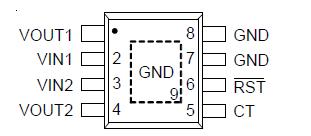

Connection Diagram


Specifications

Input Voltage, VIN1, VIN2................................6V
Power Dissipation, PD @ TA = 25°C
SOP-8 (Exposed Pad)  ............................... 1.33W
Package Thermal Resistance (Note 4)
SOP-8 (Exposed Pad), JA    ........................... 75°C/W
Storage Temperature Range   ..................... 65°C to 150°C
ESD Susceptibility (Note 2)
HBM (Human Body Mode) ............................... 2kV
MM (Machine Mode)  ................................. 200V


Description

The RT9006A/B is an efficient, precise dual-channel CMOS LDO regulator optimized for ultra-low-quiescent applications. Regulators output1 and output2 are capable of sourcing 300mA and 500mA of output current.

The RT9006' s performance is optimized for CD/DVD-ROM and CD/RW a supply applications.

The RT9006A/B regulators are stable with output capacitors as low as 1F, including current limit, thermal shutdown protection, fast transient response, low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. The RT9006A/B contains a reset circuit to detect VOUT2 voltage.

The RT9006A/B regulators are available in used SOP-8 (Exposed Pad) surface mount package.
