RT9002C

Features: `Low Quiescent Current (Typically 70A)`Wide Operating Voltage Ranges : 2.5V to 5.5V`Ultra-Fast Transient Response`Tight Load and Line Regulation`Current Limiting Protection`Thermal Shutdown Protection`Only low-ESR Ceramic Capacitors Required for Stability`Custom LDO VOUT1, VOUT2 Voltage ...

product image

RT9002C Picture
See larger image
SeekIC No. : 004479798 Detail

RT9002C: Features: `Low Quiescent Current (Typically 70A)`Wide Operating Voltage Ranges : 2.5V to 5.5V`Ultra-Fast Transient Response`Tight Load and Line Regulation`Current Limiting Protection`Thermal Shutdow...

RT9002C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RT9002C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Low Quiescent Current (Typically 70A)
`Wide Operating Voltage Ranges : 2.5V to 5.5V
`Ultra-Fast Transient Response
`Tight Load and Line Regulation
`Current Limiting Protection
`Thermal Shutdown Protection
`Only low-ESR Ceramic Capacitors Required for Stability
`Custom LDO VOUT1, VOUT2 Voltage Available from 1.5V to 3.3V
`Custom VIN Detector Available from 3.5V to 4.0V
`RoHS Compliant and 100% Lead (Pb)-Free


Application

·CD/DVD-ROM, CD/RW
·Wireless LAN Card/Keyboard/Mouse
·Battery-Powered Equipment
·XDSL Router

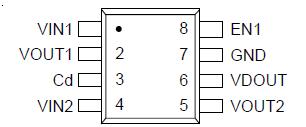

Pinout

Connection Diagram


Specifications

Supply Input Voltage  ................................6V
Package Thermal Resistance (Note 4)
SOP-8, JA.................................. 110°C/W
Power Dissipation, PD @ TA = 25°C
SOP-8  .....................................0.909W
Storage Temperature Range .................... −65°C to 150°C
ESD Susceptibility (Note 2)
HBM (Human Body Mode)   .............................2kV
MM (Machine Mode)   ............................... 200V


Description

The RT9002A/B/C is a dual-channel, low noise, and low dropout regulator. The first regulator is capable of sourcing 240mA, while the second regulator can source up to 500mA and includes a voltage detection function. The RT9002A/B/C performance is optimized for CD/DVD-ROM, CD/RW or wireless communication supply applications. The RT9002A/B/C regulator is stable with output capacitors as low as 1F. The other features include high output accuracy, ultra-fast transient response, tight load and line regulation, current limiting/thermal protection and high ripple rejection ratio. The RT9002A/B/C is available in SOP-8 package requiring minimum board space and smallest components.
