RT8004

Features: `High Efficiency : Up to 95%`Low Quiescent Current : 100A`Low RDS(ON) Internal Switches : 75m`Programmable Frequency : 300kHz to 4MHz`No Schottky Diode Required`0.8V Reference Allows Low Output Voltage`Low Dropout Operation : 100% Duty Cycle`Synchronizable Switching Frequency`Power Good ...

product image

RT8004 Picture
See larger image
SeekIC No. : 004479748 Detail

RT8004: Features: `High Efficiency : Up to 95%`Low Quiescent Current : 100A`Low RDS(ON) Internal Switches : 75m`Programmable Frequency : 300kHz to 4MHz`No Schottky Diode Required`0.8V Reference Allows Low O...

RT8004 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RT8004
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`High Efficiency : Up to 95%
`Low Quiescent Current : 100A
`Low RDS(ON) Internal Switches : 75m
`Programmable Frequency : 300kHz to 4MHz
`No Schottky Diode Required
`0.8V Reference Allows Low Output Voltage
`Low Dropout Operation : 100% Duty Cycle
`Synchronizable Switching Frequency
`Power Good Output Voltage Monitor
`Over Temperature Protection
`Thermally Enhanced SOP-16, TSSOP-16 (Exposed
   Pad) and 16-Lead VQFN 4x4 Packages
`RoHS Compliant and 100% Lead (Pb)-Free


Application

·Portable Instruments
·Battery-Powered Equipment
·Notebook Computers
·Distributed Power Systems
·IP Phones
·Digital Cameras

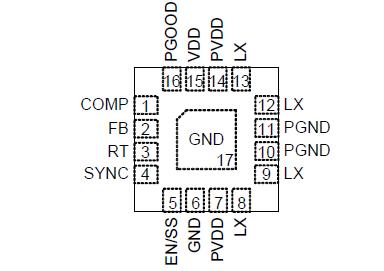

Pinout

Connection Diagram


Specifications

Supply Input Voltage ............................ −0.3V to 6V
LX Pin Switch Voltage ...................... −0.3V to (PVDD + 0.3V)
Other I/O Pin Voltages ...................... −0.3V to (VDD + 0.3V)
Power Dissipation, PD @ TA = 25°C
SOP-16  ...................................... 1.25W
TSSOP-16 ..................................... 2.66W
VQFN-16L 4x4  ..................................2.315W
Package Thermal Resistance (Note 4)
SOP-16, JA .................................. 100°C/W
TSSOP-16, JA  ................................. 47°C/W
VQFN-16L 4x4, JA  ...............................54°C/W
VQFN-16L 4x4, JC................................ 7°C/W
Lead Temperature (Soldering, 10 sec.)   ..................... 260°C
Junction Temperature  .............................. 150°C
Storage Temperature Range  .................... −65°C to +150°C
ESD Susceptibility (Note 2)
HBM (Human Body Mode) ...............................2kV
MM (Machine Mode) ................................. 200V


Description

The RT8004 is a high efficiency synchronous, step-down DC/DC converter. RT8004 input voltage range is from 2.65V to 5.5V and provides an adjustable regulated output voltage from 0.8V to 5V while delivering up to 3A of output current.

The internal power switch with 75m on-resistance increases efficiency and eliminates the need for an external Schottky diode. Switching frequency is set by an external resistor or can be synchronized to an external clock. 100% duty cycle provides low dropout operation extending battery life in portable systems. External compensation allows the transient response to be optimized over a wide range of loads and output capacitors.

The RT8004 operates in Forced Continuous Mode which reduces noise and RF interference. 100% duty cycle in Low Dropout Operation further maximize battery life.
