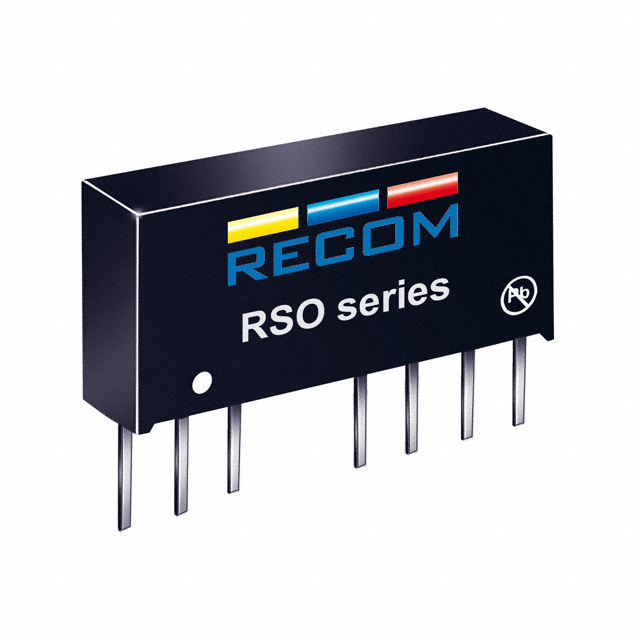

RSO-1205D

Output Current (Channel 1) :
Output Voltage (Channel 2) :
Output Current (Channel 2) :
Mounting Style :
Product : Isolated
Output Power : 1 W
Number of Outputs : 2
Output Voltage (Channel 1) : 5 V
Input Voltage (nominal) : 12 V
Input Voltage Range : 9 V to 18 V
Package / Case Size : SIP-8


Features:

· 2:1 Wide Range Voltage Input
· 1kVDC, 2kVD & 3kVDC Isolation
· UL94V-0 Package Material
· Continuous Short Circuit Protection with Current Foldback
· Low Noise
· No External Capacitor needed
· Efficiency to 83%


Pinout




Description

RSO-1205D  High power-density covering the temperature range -40°C to +85°C, offering extra features like Remote-On- Off-function and Output-Filtering via 1 external capacitor only, are just some of the characteristics of this converter, ideal for highly sophisticated industrial-designs.The RSO series RSO-1205D  is available with isolation of 2kV or 3kV by chosing option "/H2" or "/H3".
