Features:

• Time keeping voltage 1.6V to 6.0V
• Lowest supply current 0.6A TYP. (1.5A MAX.) at 3V
• Connection to the CPU via only three pins: CE, SCLK /SCLK and SIO for addressing and data read/write
• A clock counter (counting hours, minutes, and seconds) and a calendar counter (counting leap years, years, months, days, and days of the week)
   in BCD code
• Periodic interrupt pulses to the CPU with cycles ranging from one month to 1/1024Hz, with interrupt flags and interrupt halt
• Alarm interrupt (days of the week, hours, minutes)
• Oscillator halt sensing to judge internal data validity
• Second digit adjustment by ±30 seconds
• 12-hour or 24-hour time display selectable
• Automatic leap year recognition up to the year 2099
• CMOS logic
• Package: 8pin SSOP (0.65mm pitch)


Application

• Communication equipment (Multi-function telephone, portable telephone, PHS, pager)
• Business machines (Facsimile, portable facsimile)
• Personal computer (Desktop type, notebook type, word processor, PDA, electronic notebook, TV games)
• Audio visual equipment (Portable audio equipment, video camera, camera, digital camera, remote control equipment)
• Home use (Rice cooker, microwave range)


Pinout

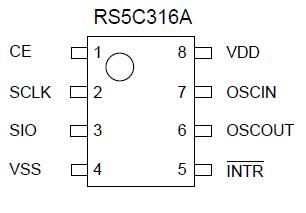

Connection Diagram


Specifications

Symbol
 Item
Conditions
Ratings
Unit
VDD
 Supply voltage
0.3 to +7.0
V
VI
 Input voltage
0.3 to VDD+0.3
V
VO1
 Output voltage 1
SIO,
0.3 to VDD+0.3
V
VO2
 Output voltage 2
INTR
0.3 to +12
V
PD
 Power dissipation
Topt=25°C
300
mW
Topt
 Operating temperature
40 to +85
°C
Tstg
 Storage temperature
55 to +125
°C

Absolute Maximum ratings are threshold limit values that must not be exceeded even for an instant under any conditions. Moreover, such values for any two items must not be reached simultaneously. Operation above these absolute maximum ratings may cause degradation or permanent damage to the device. These are stress ratings only and do not necessarily imply functional operation below these limits.
