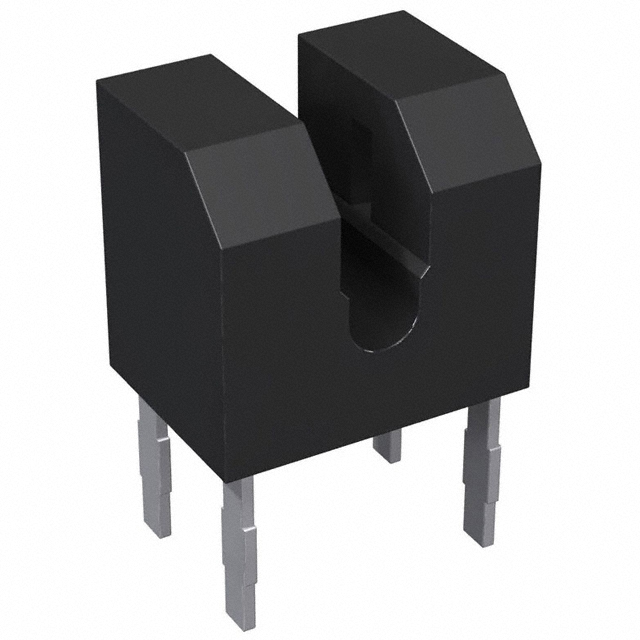

RPI-122F: SENSR OPTO SLOT 0.8MM TRANS THRU

RPI-122F Data Sheet

US $ .29~.29 / Piece | Get Latest Price

Part Number:: RPI-122F
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~2000

Unit Price
$.29

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

RPI-0125 evaluate
Optical Switches, Transmissive, with Phototransistor Output PHOTOINTERRUPTER ULTRA MIN; SMD
RPI-0126 evaluate
US $.22 - .39 / Piece

Optical Switches, Transmissive, with Phototransistor Output 50mA 5V 80mW Photointerrupter
RPI-0126K evaluate
US $.27 - .61 / Piece

SENSOR OPTO SLOT 1.2MM TRANS SMD

Product Details

Quick Details

Series:	-	Manufacturer:	Rohm Semiconductor
Sensing Distance:	0.031" (0.8mm)	Sensing Method:	Transmissive
Output Configuration:	Phototransistor	Package / Case :	HVQFN EP
Current - DC Forward (If):	50mA	Current - Collector (Ic) (Max):	30mA
Voltage - Collector Emitter Breakdown (Max):	30V	Response Time:	10µs, 10µs
Mounting Type:	Through Hole	Package / Case:	PCB Mount

Description

Series: -
Sensing Method: Transmissive
Output Configuration: Phototransistor
Mounting Type: Through Hole
Package / Case: PCB Mount
Manufacturer: Rohm Semiconductor
Current - Collector (Ic) (Max): 30mA
Voltage - Collector Emitter Breakdown (Max): 30V
Current - DC Forward (If): 50mA
Response Time: 10µs, 10µs
Packaging: Bulk
Sensing Distance: 0.031" (0.8mm)

Parameters:

Technical/Catalog Information	RPI-122F
Vendor	ROHM
Category	Sensors, Sensor Evaluation Kits
Mounting Type	Through Hole
Type	Slot Type
Forward Voltage (Vf)	1.600 VDC [Max]
Forward Voltage (Vf)	1.300 VDC [Typ]
Forward Current	50.00 mA [Max]
Collector Emitter Voltage (Vceo)	30.0 VDC [Max]
Collector Current (Ic)	30.00 mA [Max]
Slot Width	0.800 mm [Nom]
Termination Style	PC Pin
Wavelength	800 nm [Typ]
Fall Time	10.000 s [Typ]
Rise Time	10.00 s [Typ]
Has Digi-Reel	Not TR
Height	3.300 mm [Typ]
Length	4.400 mm [Typ]
Operating Temperature	-25 °C [Min]
Operating Temperature	85 °C [Max]
Packaging	Bulk
T073 Catalog Page	2233 [Nom]
Width	3.400 mm [Typ]
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RPI 122F RPI122F 511 1337 ND 5111337ND 511-1337
