RLXA2510

Features: Interpolation by 10, 5, 2 or 1, selectable Direct coupling of photodiode array Single supply Low power High speed Extended temperature range SMD package SO16WPinoutSpecifications Parameter Symbol Min Max Unit Supply voltage VDD - 0,3 12 V Power dissip...

product image

RLXA2510 Picture
SeekIC No. : 004477676 Detail

RLXA2510: Features: Interpolation by 10, 5, 2 or 1, selectable Direct coupling of photodiode array Single supply Low power High speed Extended temperature range SMD package SO16WPinoutSpecifications Pa...

floor Price/Ceiling Price

Part Number:
RLXA2510
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Interpolation by 10, 5, 2 or 1, selectable
Direct coupling of photodiode array
Single supply
Low power
High speed
Extended temperature range
SMD package SO16W

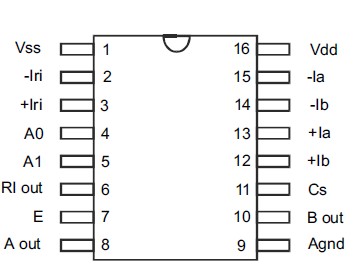

Pinout

  Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Supply voltage
VDD
- 0,3
12
V
Power dissipation
PO
0.1
W
Operating temp. range
TO
- 25
100
Storage temp. range
T stg
- 55
150
Soldering temp.(Vapor
phase reflow for 30 s)
Tsol
235



Description

The monolithic CMOS integrated circuit RLXA2510 converts the input sine and cosine signals, as well as the analog reference signal into digital signals with adjustable subdividing factor (1, 2, 5, 10).
