Features:

• Hyperfast with Soft Recovery . . . . . . . . . . . . . . . . . . <25ns
• Operating Temperature. . . . . . . . . . . . . . . . . . . . . . .150
• Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600V
• Thermal Impedance SPICE® Model
• Thermal Impedance SABER© Model
• Avalanche Energy Rated
• Planar Construction
• Related Literature
   - TB334, "Guidelines for Soldering Surface Mount Components to PC Boards"


Application

• Switching Power Supplies
• Power Switching Circuits
• General Purpose


Pinout

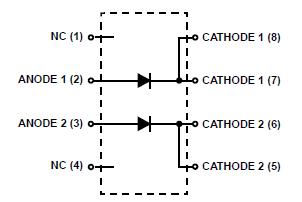

Connection Diagram


Specifications


RHR1K160D
UNITS
Peak Repetitive Reverse Voltage
VRRM
600
V
Working Peak Reverse Voltage
VRWM
600
V
DC Blocking Voltage
VR
600
V
Average Rectified Forward Current
(TA = 65)
IF(AV)
1
A
Repetitive Peak Surge Current
(Square Wave, 20kHz)
IFRM
2
A
Nonrepetitive Peak Surge Current
(Halfwave, 1Phase, 60Hz)
IFSM
10
A
Maximum Power Dissipation(Note 1)
PD
2.5
W

Avalanche Energy (See Figures 11 and 12)
EAVL
5
mJ
Operating and Storage Temperature
TSTG,TJ
-55to+150
Maximum Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s.
TL
300
Package Body for 10s, See Tech brief 334
TPKG
260



Description

The RHR1K160D is a hyperfast dual diode with soft recovery characteristics (trr < 25ns). It has about half the recovery
time of ultrafast diodes and is silicon nitride passivated ionimplanted epitaxial planar construction.

This device RHR1K160D is intended for use as freewheeling/clamping diodes and rectifiers in a variety of switching power supplies
and other power switching applications. Its low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.

Formerly developmental type TA49185.
