RFS5032RS32Q1

Features: • 3.5% EVM @ POUT = +19 dBm with IEEE 802.11a 64 QAM OFDM at 54 Mbps• 24.5 dB of Linear Power Gain at 5 GHz• Single +3.3 V Supply• 3 mm x 3 mm x 0.9 mm LPCC• < 1 dB Gain Variation From 4.9 - 5.9 GHz• 25 dBm P1dB• 170 mA @ POUT = +19 dBm•...

product image

RFS5032RS32Q1 Picture
See larger image
SeekIC No. : 004476690 Detail

RFS5032RS32Q1: Features: • 3.5% EVM @ POUT = +19 dBm with IEEE 802.11a 64 QAM OFDM at 54 Mbps• 24.5 dB of Linear Power Gain at 5 GHz• Single +3.3 V Supply• 3 mm x 3 mm x 0.9 mm LPCC• ...

RFS5032RS32Q1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RFS5032RS32Q1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.5% EVM @ POUT = +19 dBm with IEEE
  802.11a 64 QAM OFDM at 54 Mbps
• 24.5 dB of Linear Power Gain at 5 GHz
• Single +3.3 V Supply
• 3 mm x 3 mm x 0.9 mm LPCC
• < 1 dB Gain Variation From 4.9 - 5.9 GHz
• 25 dBm P1dB
• 170 mA @ POUT = +19 dBm
• RoHS Compliant
• MSL 1 Rating


Application

• 802.11a WLAN
• 5 GHz Wireless Video Distribution


Pinout

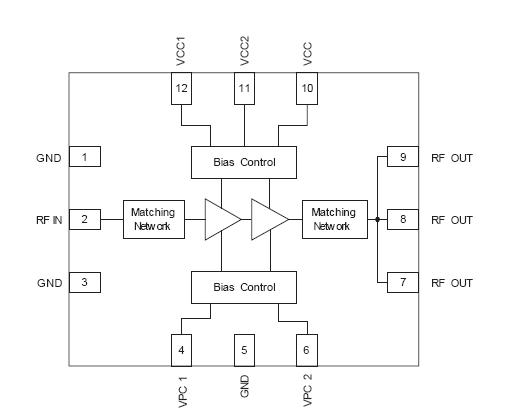

Connection Diagram


Specifications

PARAMETER MIN MAX UNIT COMMENTS
DC Power Supply (VCC, VCC1, VCC2) - +4.0 V
Power Control Level (VPC1, VPC2) - +4.0 V Applied to series resistors
external to VPC pins. No RF
signal applied.
DC Current Consumption - 700 mA
RF Input Level (RFIN) - 0 dBm
Operating Ambient Temperature -40 +85 °C
Storage Temperature -55 +150 °C



Description

The ANADIGICS RFS5032RS32Q1 power amplifier is a high performance InGaP HBT power amplifier IC designed for transmit applications in the 4.9-5.9 GHz bands. The PA exhibits unparalleled linearity and efficiency for IEEE 802.11a WLAN systems under the toughest signal configurations within these standards. The PA is biased by a single +3.3 V supply and consumes ultra-low current in the OFF mode.

Figure 1: Block Diagram and Pinout The RFS5032RS32Q1 is manufactured using advanced InGaP HBT technology that offers state-of-the-art reliability, temperature stability and ruggedness. The IC is RoHS (Restrictions on Hazardous Substances) compliant, and is provided in a 3 mm x 3 mm x 0.9 mm LPCC package optimized for a 50 system.
