Features:

➔ Advanced third-generation GaAs HBT process
➔ 4x4mm 50Ω internally matched package
➔ 28 dBm linear output power
➔ 40% power added efficiency
➔ 54% AMPS power added efficiency
➔ -50 dBc adjacent channel power rejection
➔ 3V regulated voltage
➔ 55mA quiescent current (up to 28 dBm)
➔ 29 dB linear gain





Application


➔ 3V CDMA/AMPS cellular handsets
➔ 3V CDMA 2000 1x cellular handsets
➔ Spread spectrum systems





Pinout

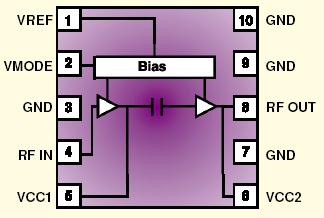

  Connection Diagram




Specifications

Frequency (MHz) 824 to 849
Gain (dB) 29 at 836
Vcc (V) 3.2 to 4.2
Package/Size (Dim in mm) 4x4 Module





Description

The RF6100-2 is a high-power, high-efficiency linear amplifier module specifically designed for 3V handheld systems. The device is manufactured on an advanced third-generation GaAs HBT process and has been designed for use as the final RF amplifier in 3V IS-95/CDMA 2000 1x/AMPS handheld digital cellular equipment, spread-spectrum systems and other applications in the 824 MHz to 849 MHz band. The RF6100-2 has a digital control line for low power applications in order to lower quiescent current. The device is self-contained with 50Ω input and output that is matched to obtain optimum power, efficiency and linearity. The module is an ultra-small 4x4mm land grid array with backside ground. The RF6100-2 is footprint compatible with industry standard 4x4mm CDMA modules and requires only one decoupling capacitor.
