REF01

Features: ` Pretrimmed to +5V, +10V ±0.3%` Excellent Temperature Stability: 3ppm/` Low Noise: 10Vp-p (REF02)` Low Supply Current: 1.4mA max` Short-Circuit Proof` Linear Temperature Transducer O/P (REF02)Application·A to D Converters·D to A Converters·Digital Voltmeters·Voltage Regulators·Threshold...

product image

REF01 Picture
See larger image
SeekIC No. : 004475917 Detail

REF01: Features: ` Pretrimmed to +5V, +10V ±0.3%` Excellent Temperature Stability: 3ppm/` Low Noise: 10Vp-p (REF02)` Low Supply Current: 1.4mA max` Short-Circuit Proof` Linear Temperature Transducer O/P (R...

REF01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
REF01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Pretrimmed to +5V, +10V ±0.3%
` Excellent Temperature Stability: 3ppm/
` Low Noise: 10Vp-p (REF02)
` Low Supply Current: 1.4mA max
` Short-Circuit Proof
` Linear Temperature Transducer O/P (REF02)


Application

·A to D Converters
·D to A Converters
·Digital Voltmeters
·Voltage Regulators
·Threshold Detectors


Pinout

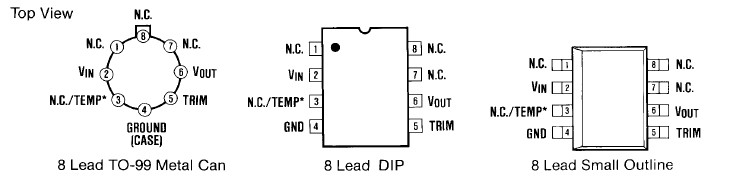

Connection Diagram


Specifications

Input Voltage
REF01, A, E, H, All DICE
REF01C
 40V
30V
Power Dissipation
T099 (J) (derate at 7.1mW above 80)
CERDIP (2) (derate at 6.7mW/ above 75)
Plastic Dip (P) (derate at 5.6mW/ above 36)
Small Outline (S) (derate at 5.0mW/ above 55)

500mW
500mW
500mW
500mW

Output Short-Circuit Duration
(to ground or VIN)
Storage Temperature Range

 Indefinite
- 65 to +150
Operating Temperature Range
REF01A, REF01
REF01E, REF01H, REF01C(except REF01CESA)
REF01CESA

 -55 to +125
0 to +70
-40 to +85
DICE Junction Temperature (Tj) -65 to +150
Lead Temperature (soldering, 60s) +300

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.




Description

The REF01 and REF02 are precision voltage references that are pretrimmed to within ±3% of +10V and +5V, respectively. Both references feature excellent temperature stability (as low as 8.5 ppm/°C worst case), low current drain, and low noise. The REF02 also provides a TEMP pin REF01 whose output voltage varies linearly with tem perature, making this device suitable for a wide variety of temperature-sensing and control applications. Both  devices ofREF01 are available from Maxim in the space-saving SO package, as well as in the standard 8-pin TO-99 and MINI-DIP packages.
