RED 50/60

Features: • Clock input pulse shaper accepts 50Hz/60Hz sine wave directly• Fully static counter operation• +4.5V to +15V operation (VDD-VSS)• Low power dissipation• High noise immunity• Reset• Input Enable• 50Hz/60Hz division select input• Outp...

product image

RED 50/60 Picture
See larger image
SeekIC No. : 004475912 Detail

RED 50/60: Features: • Clock input pulse shaper accepts 50Hz/60Hz sine wave directly• Fully static counter operation• +4.5V to +15V operation (VDD-VSS)• Low power dissipation• Hig...

RED 50/60 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RED 50/60
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Clock input pulse shaper accepts 50Hz/60Hz
   sine wave directly
• Fully static counter operation
• +4.5V to +15V operation (VDD-VSS)
• Low power dissipation
• High noise immunity
• Reset
• Input Enable
• 50Hz/60Hz division select input
• Output low power TTL compatible at +4.5V operation
• Square Wave Output (except for ÷ 5)
• RED x/y (DIP); RED x/y-S (SOIC) See Figure 1


Application

Time base generator from either 50 Hz or 60 Hz line
frequency to produce:
--10 pulses per second (RED 5/6)
--1 pulse per second (RED 50/60)
--1 pulse per 2 seconds (RED 100/120)
--1 pulse per .1 minute (RED 300/360)
--1 pulse per 10 seconds (RED 500/600)
--1 pulse per minute (RED 3000/3600)


Pinout

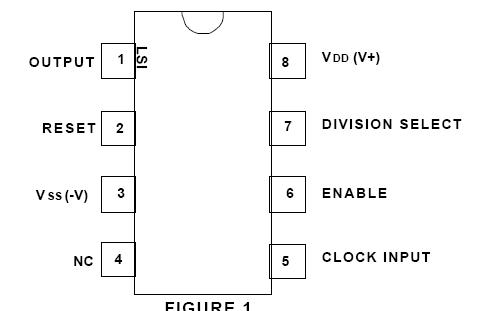

Connection Diagram


Specifications





PARAMETER SYMBOL VALUE UNIT
Storage Temperature TSTG -65 to +150 °C
Operating Temperature TA -40 to +85 °C
DC Supply Volt (VDD-Vss) +18 V
Voltage at any input VIN Vss - .3 to VDD + .3 V






Description

The counter RED 50/60 advances by one on each negative transition of the input clock pulse as long as the Enable signal is High and the Reset signal is Low. When the Enable signal is Low the input clock pulses will be inhibited and the counter RED 50/60 will be held at the state it was in prior to bringing the Enable Low. A High Reset signal clears the counter to zero count.

Depending on RED 50/60 used, a Low on the Division Select input will cause a Divide by 6, 60, 120, 360, 600 or 3600. A High on the Division Select will cause a Divide by 5, 50, 100, 300, 500 or 3000.

All outputs of RED 50/60 are 50% duty cycle except RED 5, where output is low for two clocks and high for three clocks.
