RDD 104

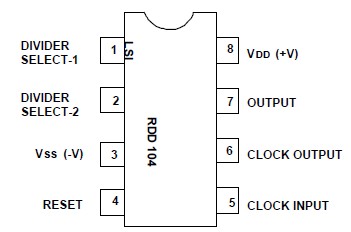

The RDD104 is a monolithic CMOS four decade divider circuit that advances on each negative transition of the input clock pulse. When the reset input of RDD 104 is high the circuit is cleared to zero. The clock input is applied to a three stage inverting amplifier network whose output is brought out so that an external crystal network can be used to form an oscillator circuit. If the clock output is not used,the amplifier acts as an input buffer. Two select inputs of RDD 104 are provided which enables the circuit to divide by 10, 100, 1,000 or 10,000.
