RDA012M4

Features: `12 Bit Resolution`1.3 GS/s Sampling Rate`4:1 Input Multiplexer`Master-Slave Operation for Synchronous Operation of Multiple Devices`Differential Analog Output`Input code format: Offset Binary`Output Swing: 600 mV with 50 Termination`3.3V NMOS-Compatible Data Inputs`Differential ECL or ...

product image

RDA012M4 Picture
See larger image
SeekIC No. : 004475759 Detail

RDA012M4: Features: `12 Bit Resolution`1.3 GS/s Sampling Rate`4:1 Input Multiplexer`Master-Slave Operation for Synchronous Operation of Multiple Devices`Differential Analog Output`Input code format: Offset Bi...

RDA012M4 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RDA012M4
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`12 Bit Resolution
`1.3 GS/s Sampling Rate
`4:1 Input Multiplexer
`Master-Slave Operation for Synchronous Operation of Multiple Devices
`Differential Analog Output
`Input code format: Offset Binary
`Output Swing: 600 mV with 50 Termination
`3.3V NMOS-Compatible Data Inputs
`Differential ECL or Sinusoidal Clock Input
`LVDS Compatible Clock Output
`10-bit static linearity
`Reference Output/Input Pin for Accurate Full-Scale Adjustment.
`3.3V and -5.2V Power Supply
`77 Lead HSD package


Pinout

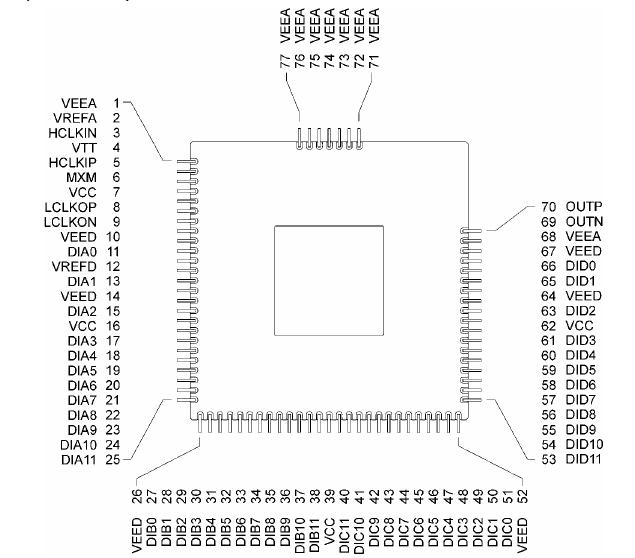

Connection Diagram


Specifications

Supply Voltages
Between GNDs .............. -0.3 to +0.3 V
Between VCCs .............-0.3 to +0.3 V
VCCs to GND ................ 0 V to +3.8 V
RF Input Voltages
CLKIP, CLKIN to GND ........................... 0 V to VCC
HS Digital Input Voltages
DI<0:11> ................................................. 0 V to VCC
Output Termination Voltages
DOUTP, DOUTN to GND ...........................0 V to VCC
Temperature
Operating Temperature.......... -30 to +100
Case Temperature........... -15 to +85
Junction Temperature........ ....... +120
Lead, Soldering (10 Seconds) ......... +220
Storage.................... -40 to 125


Description

The RDA012M4 is a digital-to-analog converter (DAC) with a 4:1 input multiplexer and a maximum update rate of 1.3GS/s. The integrated DAC RDA012M4 utilizes a segmented current source to reduce the glitch energy of RDA012M4 and to achieve high linearity performance. For best dynamic performance, the DAC outputs areinternally terminated with 50 resistance, and outputs a nominal full-scale current of 12mA when terminated with external 50 resistors. For a convenient interface with most CMOS ICs, the digital data inputs are low voltage NMOS compatible.
