RD74HV1G00VSE

Features: • The basic gate function is lined up as Renesas uni logic series.• Supplied on emboss taping for high-speed automatic mounting.• Wide supply voltage range : 4.5 to 30 V• Operating temperature range : 40 to +85°C• All inputs VIH (Min.) = 3.5 V, VIL (Max.) = ...

product image

RD74HV1G00VSE Picture
See larger image
SeekIC No. : 004475724 Detail

RD74HV1G00VSE: Features: • The basic gate function is lined up as Renesas uni logic series.• Supplied on emboss taping for high-speed automatic mounting.• Wide supply voltage range : 4.5 to 30 V&...

RD74HV1G00VSE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RD74HV1G00VSE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• The basic gate function is lined up as Renesas uni logic series.
• Supplied on emboss taping for high-speed automatic mounting.
• Wide supply voltage range : 4.5 to 30 V
• Operating temperature range : 40 to +85°C
• All inputs VIH (Min.) = 3.5 V, VIL (Max.) = 0.8 V (@VCC = 10 V to 30 V)
• Output current : IO short (Typ.) = ±70 mA (@VCC = 15 V)
• Ordering Information


Pinout

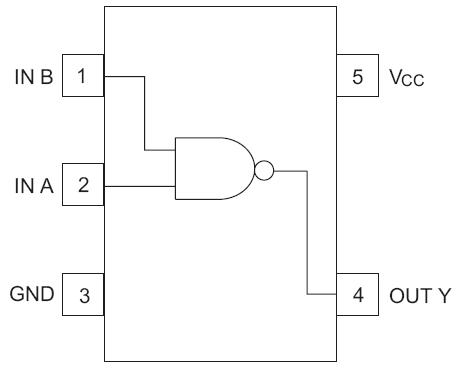

Connection Diagram


Specifications

Item Symbol Ratings Unit Test Conditions
Supply voltage range VCC 0 to 30 V
Input voltage range *1 VI 0.5 to VCC + 0.5 V
Output voltage range *1, 2 VO 0.5 to VCC + 0.5 V
Input clamp current IIK ±50 mA VI < 0 or VI > VCC
Output clamp current IOK ±75 mA VO < 0 or VO > VCC
Continuous output current IO ±100 mA VO = 0 to VCC
Continuous current through
VCC or GND		 ICC or IGND ±100 mA
Maximum power dissipation
at Ta = 25°C (in still air) *3		 PT 200 mW
Storage temperature Tstg 65 to 150 °C
Notes: The absolute maximum ratings are values which must not individually be exceeded, and   furthermore no two
of which may be realized at the same time.
1. The input and output voltage ratings may be exceeded if the input and output clamp-current     ratings   are
  observed.
2. This value is limited to 30 V maximum.
3. The maximum package power dissipation was calculated using a junction temperature of 150°C.



Description

The RD74HV1G00 has twoinput NAND gate in a 5 pin package. Supports the wide power supply voltage and can use it for the other use as a generalpurpose driver.
