RC4558

Features: • 2.5 MHz unity gain bandwidth• Supply voltage ±22V for RM4558 and ±18V for RC/RV4558• Short-circuit protection• No frequency compensation required• No latch-up• Large common-mode and differential voltage ranges• Low power consumption• Para...

product image

RC4558 Picture
See larger image
SeekIC No. : 004472596 Detail

RC4558: Features: • 2.5 MHz unity gain bandwidth• Supply voltage ±22V for RM4558 and ±18V for RC/RV4558• Short-circuit protection• No frequency compensation required• No latch-...

RC4558 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RC4558
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2.5 MHz unity gain bandwidth
• Supply voltage ±22V for RM4558 and ±18V for RC/RV4558
• Short-circuit protection
• No frequency compensation required
• No latch-up
• Large common-mode and differential voltage ranges
• Low power consumption
• Parameter tracking over temperature range
• Gain and phase match between amplifiers


Pinout

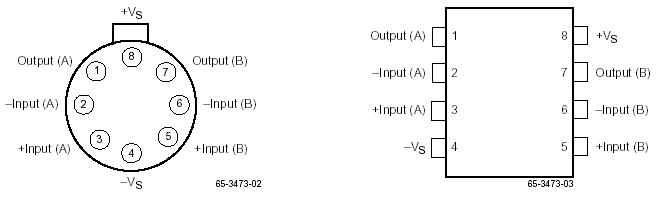

Connection Diagram


Specifications

Parameter Min Typ Max Units
Supply Voltage RM4558     ±22 V
RC4558     ±18
Input Voltage2       ±15 V
Differential Input Voltage       30 V
PDTA < 50 SOIC     300 mW
PDIP     468
CerDIP     833
TO-99     658
Junction Temperature SOIC, PDIP     125
CerDIP, TO-99     175
Operating Temperature RM4558 -55   125
RC4558 0   70
Lead Soldering Temperature PDIP, CerDIP, TO-99 (60 sec)     300
SOIC (10 sec)     260
Output Short Circuit Duration3   Indefinite



Description

The RC4558 integrated circuit is a dual high-gain operational amplifier internally compensated and constructed on a single silicon IC using an advanced epitaxial process.

Combining the features of the 741 with the close parameter matching and tracking of a dual device on a monolithic chip results in unique performance characteristics. Excellent channel separation allows the use of this dual device in dense single 741 operational amplifier applications. RC4558 is especially well suited for applications in differential-in, differential-out as well as in potentiometric amplifiers and where gain and phase matched channels are mandatory.
