RC220x

Features: ` ZigBee-ready / IEEE 802.15.4 compliant PHY and MAC` Memory space for Full Function Device (FFD)` 16.5 x 29.2 x 3.5 mm compact shielded module for SMD mounting` Up to 128 kB Flash memory, 4 kB SRAM, 4 kB EEPROM` 32 digital and analogue I/Os, 8 channel 10 bit ADC` UART, SPI and JTAG inte...

product image

RC220x Picture
See larger image
SeekIC No. : 004472557 Detail

RC220x: Features: ` ZigBee-ready / IEEE 802.15.4 compliant PHY and MAC` Memory space for Full Function Device (FFD)` 16.5 x 29.2 x 3.5 mm compact shielded module for SMD mounting` Up to 128 kB Flash memory,...

RC220x Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RC220x
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` ZigBee-ready / IEEE 802.15.4 compliant PHY and MAC
` Memory space for Full Function Device (FFD)
` 16.5 x 29.2 x 3.5 mm compact shielded module for SMD mounting
` Up to 128 kB Flash memory, 4 kB SRAM, 4 kB EEPROM
` 32 digital and analogue I/Os, 8 channel 10 bit ADC
` UART, SPI and JTAG interfaces
` On-board 32.768 kHz real time clock (RTC)
` High performance direct sequence spread spectrum (DSSS) RF transceiver
` 16 channels in the 2.45 GHz ISM band
` Integrated antenna or MMCX RF connector options
` 2.7 3.6 V supply voltage
` MCU and on-board RTC support ultra low power modes
` Conforms with EN 300 440 (Europe), FCC CFR 47 part 15 (US), ARIB STD-T66 (Japan)


Application

· Home control and industrial automation
· Building automation
· OEM equipment
· Fleet and inventory management


Pinout

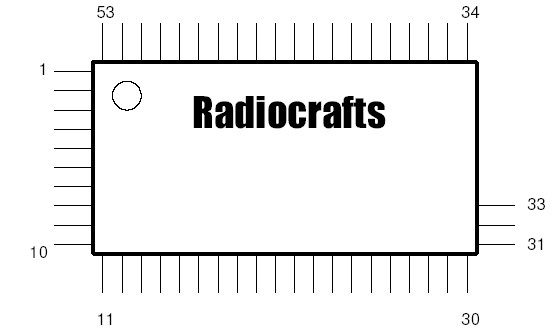

Connection Diagram


Specifications

Parameter Min Max Unit
Supply voltage, VCC -0.3 3.6 V
Voltage on any pin -0.3 VCC+0.5 V
Input RF level   10 dBm
Storage temperature -50 150
Operating temperature -30 85



Description

The RC2200/2202/2204 RF Transceiver Modules are a series of compact surface-mounted modules specially designed for the ZigBee™ protocol stack for wireless star and mesh networks based on IEEE 802.15.4 compliant PHY and MAC layers providing 16 channels in the 2.45 GHz world-wide license-free ISM band. The complete shielded module is only 16.5 x 29.2 x 3.5 mm, optionally available with integrated antenna or RF connector. Up to 128 kB flash memory, 32 digital and analogue I/Os including an 8 channel 10 bit ADC, UART and SPI interfaces. The powerful internal resources make RC2200/2202/2204  possible to embed the complete application in this tiny module.
