RC1616

Features: • Low dropout voltage• Load regulation: 0.05% typical• Current limit• On-chip thermal limiting• Standard SOT-223 and TO-252 packages• Three-terminal adjustable or fixed 2.5V, 3.3V or 5VApplication• USB Controlled Power Supply• High efficien...

product image

RC1616 Picture
See larger image
SeekIC No. : 004472546 Detail

RC1616: Features: • Low dropout voltage• Load regulation: 0.05% typical• Current limit• On-chip thermal limiting• Standard SOT-223 and TO-252 packages• Three-terminal adj...

RC1616 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RC1616
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low dropout voltage
• Load regulation: 0.05% typical
• Current limit
• On-chip thermal limiting
• Standard SOT-223 and TO-252 packages
• Three-terminal adjustable or fixed 2.5V, 3.3V or 5V


Application

• USB Controlled Power Supply
• High efficiency linear regulators for Mixed Voltage Logic, ASIC, FPGA based systems
• Post regulators for switching supplies
• Battery chargers
• 5V to 3.3V, or 2.5V, 1.8V, 1.5V linear regulators
• Motherboard clock supplies
• SDRAM Module supplies


Pinout

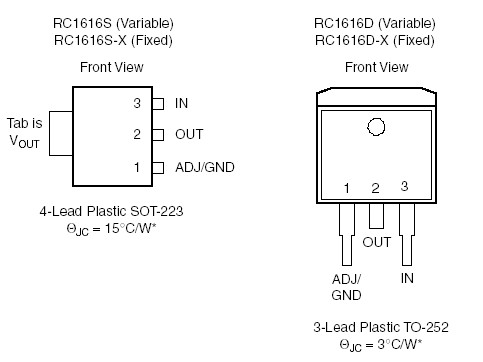

Connection Diagram


Specifications

Parameter Min. Max. Unit
VIN   7.5 V
Operating Junction Temperature Range 0 125
Storage Temperature Range -65 150
Lead Temperature (Soldering, 10 sec.)   300



Description

The RC1616 and RC1616-2.5, -3.3 and -5 are low dropout three-terminal regulators with 0.5A output current capability. These devices have been optimized for low voltage where transient response and minimum input voltage are critical. The 5V version is designed also to be used in USB Hub and Motherboard applications.

On-chip thermal limiting provides protection against any combination of overload and ambient temperature that would create excessive junction temperatures.Unlike PNP type regulators where up to 10% of the output current is wasted as quiescent current, the bias current of the RC1616 flows into the load, increasing efficiency.

The RC1616 series regulators are available in the industrystandard SOT-223 and TO-252 power packages.
