R5101G

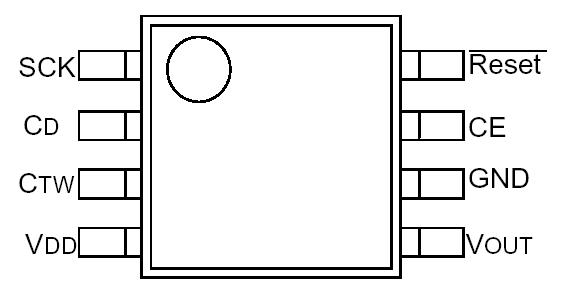

The R5101G Series are microprocessor power management ICs with high accuracy output voltage and detector threshold and with ultra low supply current by CMOS process. Each of these ICs consists of a voltage regulator, a voltage detector and a watchdog timer. Thus, the R5101G Series have the function of a power management for microprocessor, a monitor of the voltage of a power source and a microprocessor supervisor.

The built-in voltage regulator with an internal driver transistor can supply typically 50mA current to a system when the voltage difference between input and output is 2V. Therefore these ICs are very suitable for various power supply systems for microprocessors. The output voltage is monitored by the voltage detector which is built-in these ICs.

The built-in voltage detector of R5101G has an output delay function and the delay time can be set by an external capacitor(CD).

The output voltage and the detector threshold voltage can be set individually for each IC by laser trimming. Furthermore, when a microprocessor works incorrectly, the watchdog timer which checks over microprocessor generates reset signals intermittently to prevent a whole system from being malfunction. The time period for watching and holding a reset signal of the watchdog timer can also be set individually by an external capacitor(CTW).
