R2S15901SP

Features: • CMOS Technology• 2-Channel 24-bit Audio signals delay• Delay time is controlled by DC voltage (9steps: 1, 7/8, 3/4, 5/8, 1/2, 3/8, 1/4, 1/8 times)• 43K bytes RAM up to delay 224ms(@fs = 32kHz) When fs = 48kHz, maximum delay is 149ms.• 2 3-state pins for 9-...

product image

R2S15901SP Picture
See larger image
SeekIC No. : 004469063 Detail

R2S15901SP: Features: • CMOS Technology• 2-Channel 24-bit Audio signals delay• Delay time is controlled by DC voltage (9steps: 1, 7/8, 3/4, 5/8, 1/2, 3/8, 1/4, 1/8 times)• 43K bytes RAM ...

R2S15901SP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
R2S15901SP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CMOS Technology
• 2-Channel 24-bit Audio signals delay
• Delay time is controlled by DC voltage (9steps: 1, 7/8, 3/4, 5/8, 1/2, 3/8, 1/4, 1/8 times)
• 43K bytes RAM up to delay 224ms(@fs = 32kHz)
   When fs = 48kHz, maximum delay is 149ms.
• 2 3-state pins for 9-step configuration
• 3.3V signal input available


Application

LCD TV, PDP, DVD Recorder, AV Amplifier

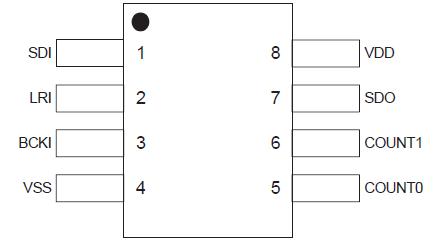

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Power supply voltage
VDD
0.3 to +2.75
V
Input pin voltage
VI
0.3 to 3.6
V
Power dissipation
PD
100
mW
Operating temperature
Topr
20 to +75
°C
Storage temperature
Tstg
40 to +125
°C



Description

R2S15901SP is a digital audio delay chip to synchronize the TV video and audio signals.
