Product Details

Description

Features:

Function	Features
Volume Input selector Rec output Tone control Surround/ Pseudo stereo Mode selector Output gain control MCU interface	0 to 84dB, / 1dB step Each channel is independence control. 5 input selector + MUTE 2 Rec output Bass: 15dB to +15dB/ 1dB step Treble: 15dB to +15dB/ 1dB step Surround <Low/ High> Pseudo Stereo Bypass/ Tone / Tone & Pseudo Stereo or Surround 0dB/ +4.5dB I²C-BUS control.

Application

TV, Mini Stereo, etc.

Pinout

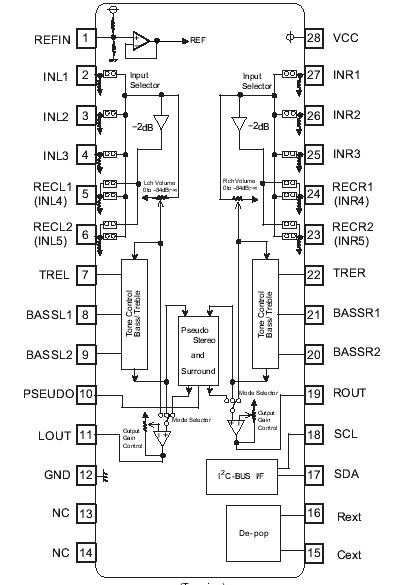

Connection Diagram

Description

The R2S15900SP is an optimum audio signal processor IC for TV. It has a 5ch input selector, surround/pseudo stereo, tone control(2band), output gain control and 2ch master volume. It can control all of these functions with I2C bus.
