R1LP0408C-C

Features: • Single 5 V supply: 5 V ± 10%• Access time: 55/70 ns (max)• Power dissipation:Active: 10 mW/MHz (typ)Standby: 4 W (typ)• Completely static memory. No clock or timing strobe required• Equal access and cycle times• Common data input and output.Three sta...

product image

R1LP0408C-C Picture
See larger image
SeekIC No. : 004468948 Detail

R1LP0408C-C: Features: • Single 5 V supply: 5 V ± 10%• Access time: 55/70 ns (max)• Power dissipation:Active: 10 mW/MHz (typ)Standby: 4 W (typ)• Completely static memory. No clock or timi...

R1LP0408C-C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
R1LP0408C-C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 5 V supply: 5 V ± 10%
• Access time: 55/70 ns (max)
• Power dissipation: Active: 10 mW/MHz (typ) Standby: 4 W (typ)
• Completely static memory. No clock or timing strobe required
• Equal access and cycle times
• Common data input and output. Three state output
• Directly TTL compatible.  All inputs and outputs
• Battery backup operation.
• Operating temperature: −20 to +70°C

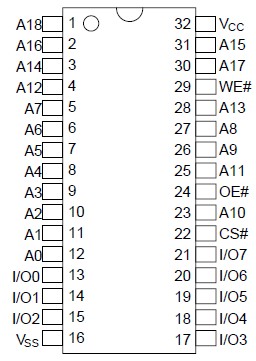

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Power supply voltage relative to VSS VCC −0.5 to +7.0 V
Terminal voltage on any pin relative to VSS VT −0.5*1 to VCC + 0.3*2 V
Power dissipation PT 0.7 W
Operating temperature Topr −20 to +70 °C
Storage temperature range Tstg −65 to +150 °C
Storage temperature range under bias Tbias −20 to +85 °C
Notes: 1. VT min: −3.0 V for pulse half-width 30 ns.
           2. Maximum voltage is +7.0 V.


Description

The R1LP0408C-C is a 4-Mbit static RAM organized 512-kword × 8-bit. R1LP0408C-C Series has realized higher density, higher performance and low power consumption by employing CMOS process technology (6-transistor memory cell). The R1LP0408C-C Series offers low power standby power dissipation; therefore, it is suitable for battery backup systems. It has packaged in 32-pin SOP, 32-pin TSOP II.
