Features:

`Ultra-Low Supply Current.........................................TYP. 35mA
`Standby Mode ...........................................................TYP. 0.1mA
`Low Dropout Voltage ................................................TYP. 0.2V(IOUT=100mA)
`High Ripple Rejection ...............................................TYP. 70dB(f=1kHz)
`Low Temperature-Drift Coefficient of
`Output Voltage...........................................................TYP. ±100ppm/°C
`Excellent Line Regulation .........................................TYP. 0.05%/V
`High Output Voltage Accuracy..................................±2.0%
`Excellent Line Transient Response and Load Transient Response
`Small Package ..........................................................SOT-23-5(Mini-mold)
`Output Voltage...........................................................Stepwise setting with a step of 0.1V in the range of 1.5V to 5.0V is possible
`Built-in chip enable circuit ( 2 types; A: "L" active , B: "H" active)
`Pinout ........................................................................Similar to the LP2980

Application

· Power source for cellular phones such as GSM,CDMA and various kind of PCSs.
· Power source for electrical appliances such as cameras, VCRs and camcorders.
· Power source for battery-powered equipment.

Pinout

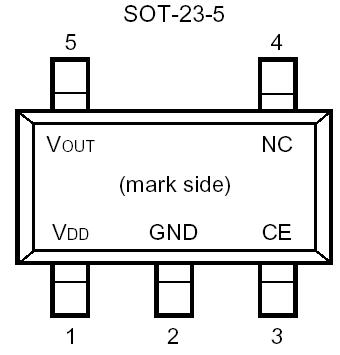

Connection Diagram

Specifications

Item	Symbol	Rating	Unit
Input Voltage	V_IN	9	V
Input Voltage (CE or CE Pin)	V_CE	0.3 to V_IN +0.3	V
Output Voltage	V_OUT	0.3 to V_IN +0.3	V
Power Dissipation	P_D	250	mW
Operating Temperature Range	T_opt	40 to 85	°C
Storage Temperature Range	T_stg	55 to 125	°C

Description

The R1111N Series are voltage regulator ICs with high output voltage accuracy, extremely low supply current, low ONresistance, and high Ripple Rejection by CMOS process. Each of R1111N consists of a voltage reference unit, an error amplifier, resistors, a current limit circuit, and a chip enable circuit.

These ICs perform with low dropout voltage and a chip enable function. The line transient response and load transient response of the R1111N Series are excellent, thus these ICs are very suitable for the power supply for hand-held communication equipment.

The output voltage of R1111N is fixed with high accuracy. Since the package for these ICs are SOT-23-5 (Mini-mold) package , high density mounting of the ICs on boards is possible.
