R1110N

Features: • Ultra-Low Supply Current.....................TYP. 35µA• Standby Current.....................................TYP. 0.1µA• Dropout Voltage.....................................TYP. 0.2V (IOUT=100mA)• High Ripple Rejection............................TYP. ...

product image

R1110N Picture
See larger image
SeekIC No. : 004468874 Detail

R1110N: Features: • Ultra-Low Supply Current.....................TYP. 35µA• Standby Current.....................................TYP. 0.1µA• Dropout Voltage........................

R1110N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
R1110N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ultra-Low Supply Current.....................TYP. 35µA
• Standby Current.....................................TYP. 0.1µA
• Dropout Voltage.....................................TYP. 0.2V (IOUT=100mA)
• High Ripple Rejection............................TYP. 70dB (f=1kHz)
• High Accuracy Output Voltage ............±2.0%
• Low Temperature-Drift Coefficient of
   Output Voltage .......................................TYP. ±100ppm/°C
• Excellent Line Regulation.....................TYP. 0.05%/V
• Pinout.......................................................Similar to the LP2980
• Small Package.........................................SOT-23-5 (Mini-mold)


Application

• Power source for portable communication tools, cameras and VCRs.
• Power source for battery-powered equipment.
• Power source for domestic appliances.


Pinout

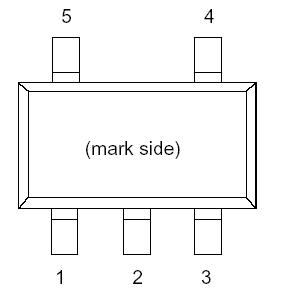

Connection Diagram


Specifications

Symbol Item Rating Unit
VIN Input Voltage 9 V
VCE Input Voltage for CE/CE Pin 0.3 to VIN +0.3 V
VOUT Output Voltage 0.3 to VIN +0.3 V
IOUT Output Current 200 mA
PD Power Dissipation 250 mW
Topt Operating Temperature Range 40 to 85 °C
Tstg Storage Temperature Range 55 to 125 °C



Description

The R1110N Series are voltage regulator ICs with high output voltage accuracy, lowest supply current, low ON Resistance and high Ripple Rejection by CMOS process. Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, resistors, a current limit circuit and a chip enable circuit.

The R1110N  perform with low dropout voltage and a chip enable function.

The Dynamic Response to line and load is fast, so R1110N is very suitable for the power supply for handheld communication equipment.

The output voltage of R1110N is fixed with high accuracy. Since the package for these ICs are SOT-23-5(Mini-mold)package, high density mounting of the ICs on boards is possible.
