QS5805T

Features: - 10 output, low skew signal buffer- Guaranteed low skew:· 0.7ns output skew (same bank)· 0.9ns output skew (different bank)· 1ns part-to-part skew- Input hysteresis for better noise margin- Monitor output- Undershoot clamp diodes on all inputs- Std., A, and B speed grades- Available in ...

product image

QS5805T Picture
See larger image
SeekIC No. : 004468519 Detail

QS5805T: Features: - 10 output, low skew signal buffer- Guaranteed low skew:· 0.7ns output skew (same bank)· 0.9ns output skew (different bank)· 1ns part-to-part skew- Input hysteresis for better noise margi...

QS5805T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
QS5805T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

-  10 output, low skew signal buffer
-  Guaranteed low skew:
·  0.7ns output skew (same bank)
·  0.9ns output skew (different bank)
·  1ns part-to-part skew
-  Input hysteresis for better noise margin
-  Monitor output
-  Undershoot clamp diodes on all inputs
-  Std., A, and B speed grades
-  Available in QSOP and SOIC packages


Pinout

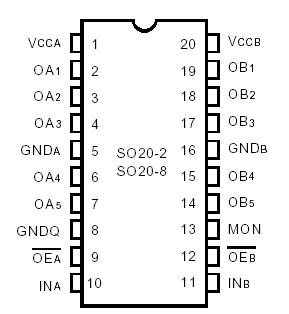

Connection Diagram


Specifications

Rating
Symbol
Max
 unit
Supply Voltage Range
VTERM(2)
0.5 to +4.6
 V
Input Voltage Range
VI (2)
0.5 to +5.5
 V
Voltage range applied to any
output in the high or low state
VO(2)
0.5 to VDD + 0.5
 V
Input clamp current
IIK (VI < 0)
50
 mA
Terminal Voltage with Respect
to GND (inputs VIH 2.5, VIL 2.5)
IOK
(VO < 0 or VO > VDD)
-50
 mA
Continuous Output Current
IRES
±100
 mA
Continuous Current
VDD or GND
65 to +150
 mA
Junction Temperature
TSTG
150
 °C


NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMU RATINGS may cause permanent damage to the device. This is stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Vcc Terminals.
3. All terminals except Vcc.




Description

The QS5805T clock buffer/driver circuits can be used for clock buffering schemes where low skew is a key parameter. This device offers two banks of five non-inverting outputs. The QS5805T provides low propagation delay buffering with on-chip skew of 0.7ns for same-transition, same-bank signals.

The QS5805T is characterized for operation at -40°C to +85°C.
