Product Details

Description



Features:

• N channel FET switches with no parasitic diode to Vcc
− Isolation under power-off conditions
− No DC path to Vcc or GND
− 5V tolerant in OFF and ON state
• 5V tolerant I/Os
• Low RON - 4 typical
• Flat RON characteristics over operating range
• Rail-to-rail switching 0 - 5V
• Bidirectional dataflow with near-zero delay: no added ground bounce
• Excellent RON matching between channels
• Vcc operation: 2.3V to 3.6V
• High bandwidth - up to 500 MHz
• LVTTL-compatible control Inputs
• Undershoot Clamp Diodes on all switch and control Inputs
• Low I/O capacitance, 4pF typical
• Available in SSOP and TSSOP packages


Application

• Hot-swapping
• 10/100 Base-T, Ethernet LAN switch
• Low distortion analog switch
• Replaces mechanical relay
• ATM 25/155 switchin


Pinout

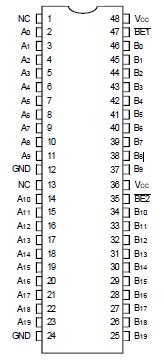

Connection Diagram


Specifications

Symbol
 Description
Max.
Unit
VTERM(2)
 Supply Voltage to Ground
0.5 to 4.6
V
VTERM(3)
 DC Switch Voltage VS
0.5 to 5.5
V
VTERM(3)
 DC Input Voltage VIN
0.5 to 5.5
V
VAC
 AC Input Voltage (pulse width 20ns)
3
V
IOUT
 DC Output Current (max. current/pin)
120
mA
TSTG
 Storage Temperature
-65 to +150



Description

The QS3VH16861 HotSwitch with 20-bit flow-though pin out is a high bandwidth bus switch. The QS3VH16861 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches are controlled by active low enable (BEx) controls. In the ON state, the switches can pass signals up to 5V. In the OFF state, the switches offer very high impedence at the terminals.

The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the QS3VH16861 ideal for high performance communications applications.

The QS3VH16861 is characterized for operation from -40to +85
