Product Details

Description

Features:

· Miniature SIL Package
· Unique QM (Quasi AM/FM) Design
· Data Rates Up To 10kbits/s
· Optimal Range 200m (433.92MHz Versions)
· 433.92 / 868 MHz Versions
· Very High Sensitivity (-112 dBm)
· Very Low Current Consumption
· Single 5v Supply
· Signal Strength Output (RSSI)
· High Selectivity (20KHz B/W Possible on QMR1 )
· Immune To FM Threshold Effect

Application

· Vehicle Alarm Systems
· Remote Gate Controls
· Garage Door Openers
· Domestic And Commercial Security

Pinout

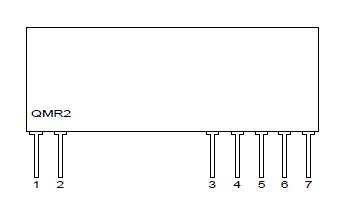

Connection Diagram

Specifications

Operating temperature: ...................-10°C to +55°C
Storage temperature:.................... -40°C to +100°C
Supply Voltage......................................................... 5V
Data input ..............................................................10V
RF Input .........±50V @ < 10MHz , +20dBm @ > 10MHz

Description

These miniature UHF receiver radio modules QMR2 enable the implementation of a simple telemetry link at data rates of up to 10Kbit/s when used with one of the compatible transmitter modules.

Available for operation at 433.92 and 868 MHz these modules QMR2 are able to receive at distances of up to 200Mtrs.

The QMR1 / QMR2 modules will suit one-to-one and multi-node wireless links in applications including building and car security, remote industrial process monitoring and computer networking. Because of its small size and low power requirements, the module is ideal for use in portable battery powered wireless applications.
