QMR1

Features: · Miniature SIL Package· Unique QM (Quasi AM/FM) Design· Data Rates Up To 10kbits/s· Optimal Range 200m (433.92MHz Versions)· 433.92 / 868 MHz Versions· Very High Sensitivity (-112 dBm)· Very Low Current Consumption· Single 5v Supply· Signal Strength Output (RSSI)· High Selectivity (20KH...

product image

QMR1 Picture
See larger image
SeekIC No. : 004468319 Detail

QMR1: Features: · Miniature SIL Package· Unique QM (Quasi AM/FM) Design· Data Rates Up To 10kbits/s· Optimal Range 200m (433.92MHz Versions)· 433.92 / 868 MHz Versions· Very High Sensitivity (-112 dBm)· V...

QMR1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
QMR1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Miniature SIL Package
· Unique QM (Quasi AM/FM) Design
· Data Rates Up To 10kbits/s
· Optimal Range 200m (433.92MHz Versions)
· 433.92 / 868 MHz Versions
· Very High Sensitivity (-112 dBm)
· Very Low Current Consumption
· Single 5v Supply
· Signal Strength Output (RSSI)
· High Selectivity (20KHz B/W Possible on QMR1 )
· Immune To FM Threshold Effect


Application

· Vehicle Alarm Systems
· Remote Gate Controls
· Garage Door Openers
· Domestic And Commercial Security

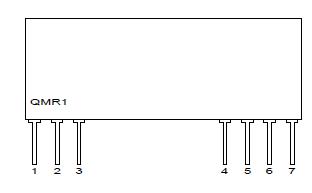

Pinout

Connection Diagram


Specifications

Operating temperature: ...................-10°C to +55°C
Storage temperature:.................... -40°C to +100°C
Supply Voltage......................................................... 5V
Data input ..............................................................10V
RF Input .........±50V @ < 10MHz , +20dBm @ > 10MHz


Description

These miniature UHF receiver radio modules QMR1 enable the implementation of a simple telemetry link at data rates of up to 10Kbit/s when used with one of the compatible transmitter modules.

Available for operation at 433.92 and 868 MHz these modules QMR1 are able to receive at distances of up to 200Mtrs.

The QMR1 / QMR2 modules will suit one-to-one and multi-node wireless links in applications including building and car security, remote industrial process monitoring and computer networking. Because of its small size and low power requirements, the module is ideal for use in portable battery powered wireless applications.
