QL4058

The QuickRAM family of ESPs (Embedded Standard Products) QL4058 offers FPGA logic in combination with Dual-Port SRAM modules. The QL4058 is a 58,000 usable PLD gate member of the QuickRAM family of ESPs. QuickRAM ESPs are fabricated on a 0.35 m four-layer metal process using QuickLogic's patented ViaLinkTM technology to provide a unique combination of high performance, high density, low cost, and extreme ease-of-use.

The QL4058 contains 1,008 logic cells and 18 Dual Port RAM modules (see Figure 1). Eac h RAM module has 1,152 RAM bits, for a total of 20,736 bits. RAM Modules are Dual Port (one read port, one write port) and can be configured into one of four modes:

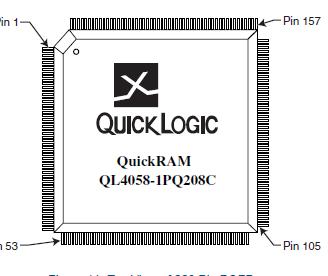

64 (deep) * 18 (wide), 128 * 9, 256 * 4, or 512 * 2 (see Figure 4). With a maximum of 252 I/Os, the QL4058 is available in 208-PQFP, 240-pin PQFP, and 456-pin PBGA packages.

Designers can cascade multiple RAM modules to increase the depth or width allowed in single modules by connecting corresponding address lines together and dividing the words between modules (see Figure 2). This approach allows up to 512-deep configurations as large as 16 bits wide in the smallest QuickRAM device and 44 bits wide in the largest device.

Software support for the complete QuickRAM family, including the QL4058, is available through two basic packages. The turnkey QuickWorksTM package provides the most complete ESP software solution from design entry to logic synthesis, to place and route, to simulation. The QuickTools package provides a solution for designers who use Cadence, Exemplar, Mentor, Synopsys, Synplicity, Viewlogic, Aldec, or other third-party tools for design entry, synthesis, or simulation.

The QuickLogicTM variable grain logic cell of QL4058 features up to 16 simultaneous inputs and five outputs within a cell that can be fragmented into five independent cells. Each cell has a fanin of 29 including register and control lines (see Figure 3).
