PYX28C64

Features: Access Times of 200, 250, 300 and 350 nsSingle 5V±10% Power SupplySimple Byte and Page WriteLow Power CMOS:- 60 mA Active Current- 200 A Standby CurrentFast Write Cycle TimesSoftware Data ProtectionFully TTL Compatible Inputs and OutputsEndurance: 10,000 or 100,000 CyclesData Retention: ...

product image

PYX28C64 Picture
See larger image
SeekIC No. : 004467485 Detail

PYX28C64: Features: Access Times of 200, 250, 300 and 350 nsSingle 5V±10% Power SupplySimple Byte and Page WriteLow Power CMOS:- 60 mA Active Current- 200 A Standby CurrentFast Write Cycle TimesSoftware Data ...

PYX28C64 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PYX28C64
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Access Times of 200, 250, 300 and 350 ns
Single 5V±10% Power Supply
Simple Byte and Page Write
Low Power CMOS:
- 60 mA Active Current
- 200 A Standby Current
Fast Write Cycle Times
Software Data Protection
Fully TTL Compatible Inputs and Outputs
Endurance: 10,000 or 100,000 Cycles
Data Retention: 100 Years
Available in the following Packages:
32-Pin Ceramic LCC (450 x 550 mils)
28-Pin 600 mil Ceramic DIP




Pinout

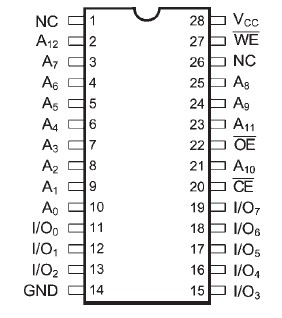

Connection Diagram




Specifications

Symbol

Parameter

Value

Unit

VCC

Power Supply Pin with Respect to GND

0.3 to +6.25

V

VTERM

Terminal Voltage with Respect to GND (up to 6.25V)

0.5 to +6.25

V

TA

Operating Temperature

55 to +125

°C






Description

The PYX28C64 is a 5 Volt 8Kx8 EEPROM using floating gate CMOS Technology. The device supports 64-byte page write operation. The PYX28C64 features DATA and Toggle Bit Polling as well as a system software scheme used to indicate early completion of a Write Cycle. The device also includes user-optional software data protection. Endurance is 10,000 or 100,000 Cycles and Data Retention is 100 Years. The device is available in a 32-Pin LCC package as well as a 28-Pin 600 mil wide Ceramic DIP.
