PXB 4330

Features: • ATM layer processing up to STM-4/OC-12 equivalent• Throughput up to 687 Mbit/s, bi-directional• Uni-directional mode with resources of both directions usable (optional)• Up to 8192 connections, individually assignable to queues• Up to 1024 queues per direc...

product image

PXB 4330 Picture
See larger image
SeekIC No. : 004467436 Detail

PXB 4330: Features: • ATM layer processing up to STM-4/OC-12 equivalent• Throughput up to 687 Mbit/s, bi-directional• Uni-directional mode with resources of both directions usable (optional)...

PXB 4330 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PXB 4330
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• ATM layer processing up to STM-4/OC-12 equivalent
• Throughput up to 687 Mbit/s, bi-directional
• Uni-directional mode with resources of both directions usable (optional)
• Up to 8192 connections, individually assignable to queues
• Up to 1024 queues per direction, individually assignable to schedulers and to service classes
• FIFO queuing within each queue
• Up to 48 schedulers per direction with programmable service rates, individually assignable to PHYs (up to 96 schedulers per direction by cascading two ABM chips,see Application Note [7])
• Up to 16 traffic classes with individually selectable thresholds for service classes
• Up to 24 PHYs

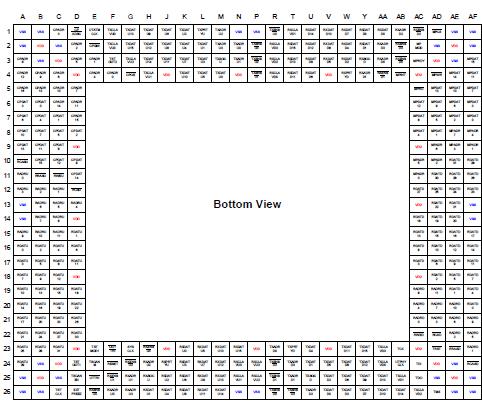

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
Ambient temperature under bias PXB TA -40 to 85
Storage temperature Tstg -40 to 125
IC supply voltage with respect to ground VDD -0.3 to 3.6 V
Voltage on any pin with respect to ground VS -0.4 to VDD + 0.4 V
ESD robustness1)
HBM: 1.5 kW, 100 pF		 VESD,HBM 2500 V
1) According to MIL-Std 883D, method 3015.7 and ESD Association Standard EOS/ESD-5.1-1993.The RF Pins 20, 21, 26, 29, 32, 33, 34 and 35 are not protected against voltage stress > 300 V (versus VS or GND). The high frequency performance prohibits the use of adequate protective structures.
Note: Stresses above those listed here may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability
