PXB4330E

Features: • Performance up to STM-4/OC-12 equivalent ATM layer processing • Flexibel throughput from1 .. 687 Mbit/s bi-directional• Up to 16384 connections in both directions (VPC/ VCC)• Temperature range from 0 to 70• Multiport UTOPIA Level 2 interface in up- and dow...

product image

PXB4330E Picture
See larger image
SeekIC No. : 004467443 Detail

PXB4330E: Features: • Performance up to STM-4/OC-12 equivalent ATM layer processing • Flexibel throughput from1 .. 687 Mbit/s bi-directional• Up to 16384 connections in both directions (VPC/...

PXB4330E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PXB4330E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Performance up to STM-4/OC-12 equivalent ATM layer processing
• Flexibel throughput from1 .. 687 Mbit/s bi-directional
• Up to 16384 connections in both directions (VPC/ VCC)
• Temperature range from 0 to 70
• Multiport UTOPIA Level 2 interface in up- and downstream direction according to ATM Forum, UTOPIA Level 1 and 2 specifications [1,2]
• 16-bit microprocessor interface, e.g. 386EX
• Cell insert/extract function
• 32 cell FIFO buffer at UTOPIA upstream receive interface
• 96 cell shared buffer for up to 24 PHYs at UTOPIA downstream transmit interface
• Boundary scan support according to JTAG [4]
• Internal data stream loop at ATM and at PHY side


Pinout

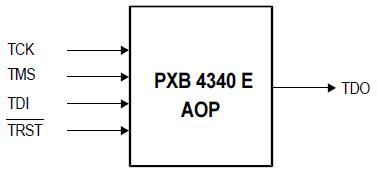

Connection Diagram


Specifications

Parameter Symbol
Limit Values
Unit
Ambient temperature under biasPXB TA -40 to 85
Storage temperature Tstg -40 to 125
IC supply voltage with respect to ground VDD -0.3 to 3.6 V
Voltage on any pin with respect to ground VS -0.4 to VDD + 0.4 V
ESD robustness1) HBM: 1.5 k, 100 pF VESD,HBM 2500 V
1) According to MIL-Std 883D, method 3015.7 and ESD Association Standard EOS/ESD-5.1-1993.
The RF Pins 20, 21, 26, 29, 32, 33, 34 and 35 are not protected against voltage stress > 300 V (versus VS or
GND). The high frequency performance prohibits the use of adequate protective structures.
