PXASCCKFBE

Features: • 3.3V to 5.5V operation to 30MHz over the industrial temperature range, available in 100 pin LQFP package.• 4 onboard SCC's for 2B+D plus Asynch port, or any combination of 4 sync/async ports. Industry standard IDL and SCP interfaces for glueless connection to U-Chip or S/T ...

product image

PXASCCKFBE Picture
See larger image
SeekIC No. : 004467435 Detail

PXASCCKFBE: Features: • 3.3V to 5.5V operation to 30MHz over the industrial temperature range, available in 100 pin LQFP package.• 4 onboard SCC's for 2B+D plus Asynch port, or any combination of 4 ...

PXASCCKFBE Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PXASCCKFBE
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3.3V to 5.5V operation to 30MHz over the industrial temperature range, available in 100 pin LQFP package.
• 4 onboard SCC's for 2B+D plus Asynch port, or any combination of 4 sync/async ports. Industry standard IDL and SCP interfaces for glueless connection to U-Chip or S/T chip. Sync data rates to 4Mbps. Asynch data rates to 921.6Kbps with/without autobaud.
• Complete onboard DRAM controller supports 5 banks of up to 8MBytes each. Interfaces without glue chips to most industry standard DRAMs.
• Memory controller also generates 6 chip selects to support SRAM, ROM, Flash, EPROM, peripheral chips, etc. without external glue.
• Supports off-chip addressing up to 32 MB (2 x 2**24 address spaces) in Harvard architecture, or 16MB in unified memory configuration.
• A clock output reference "ClkOut" is added to simplify external bus interfacing.
• High performance 8-channel DMA Controller offloads the CPU for moving data to/from SCC's and memory.
• Two standard counter/timers with enhanced features (same as XA-G3 T0, T1). Both timers have a toggle output capability.
• Watchdog timer.
• Seven standard software interrupts, plus four High Priority Software Interrupts, plus 7 levels of Hardware Event Interrupts.
• Active low reset output pin indicates all internal reset occurrences (watchdog reset and the RESET instruction). A reset source register allows program determination of the cause of the most recent reset.
• 32 General Purpose I/O pins, each with 4 programmable output configurations.
• Power saving operating modes: Idle and Power-Down. Wake-Up from power-down via an external interrupt is supported.


Pinout

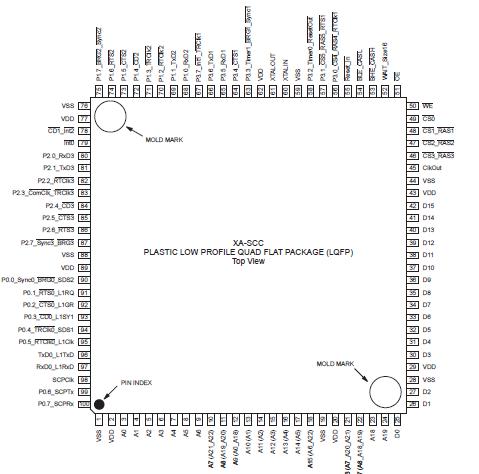

Connection Diagram


Specifications

PARAMETER
RATING
UNIT
Operating temperature under bias
55 to +125
Storage temperature range
65 to +150
Voltage on any other pin to VSS
0.5 to VDD+0.5V
v
Maximum IOL per I/O pin
15
mA
Power dissipation (based on package heat transfer, not device power consumption)
1.5
W



Description

The XA-SCC device is a member of Philips' XA (eXtended Architecture) family of high performance 16-bit single-chip
microcontrollers.
The XA-SCC includes a complete onboard DRAM controller capable of supporting up to 32MegaBytes of DRAM.

The XA-SCC device combines many powerful communications oriented peripherals on one chip. 4 Full Function SCC's, 8 DMA channels (2 per SCC), hardware autobaud up to 921.6Kbps, IDL TDM interface, two timers/counters, 1 watchdog timer, and multiple general purpose I/O ports. It is suited for many high performance embedded communications functions, including ISDN terminal adaptors and Asynchronous Muxes.
