PWM5031

Features: ` Radiation Hardness:- Total Dose 1MRad(Si) - Single Event Upset (SEU) 100MeV-cm2/mg` CMOS Low Power Design` Sleep & Enable Control Lines` Optimized for Applications: Buck, Boost, Flyback,Forward and Center Tapped Push-Pull Converters` Supports Current Mode or Voltage Mode Operations...

product image

PWM5031 Picture
See larger image
SeekIC No. : 004467377 Detail

PWM5031: Features: ` Radiation Hardness:- Total Dose 1MRad(Si) - Single Event Upset (SEU) 100MeV-cm2/mg` CMOS Low Power Design` Sleep & Enable Control Lines` Optimized for Applications: Buck, Boost, Flyb...

PWM5031 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PWM5031
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Radiation Hardness:- Total Dose 1MRad(Si) - Single Event Upset (SEU) 100MeV-cm2/mg
` CMOS Low Power Design
` Sleep & Enable Control Lines
` Optimized for Applications: Buck, Boost, Flyback,Forward and Center Tapped Push-Pull Converters
` Supports Current Mode or Voltage Mode Operations
` Selectable 50%/ 100% Duty Cycle
` Under-Voltage Lockout with Hysteresis
` Dual ±1Amp Peak Totem Pole Outputs
` 1MHz Maximum User Selectable
` Low RO Error Amp
` Auxiliary Op Amp with Shut Down Pin
` Power OK Indicator
` Designed for Commercial, Industrial and Aerospace Applications
` Ceramic 24-Gull lead, Hermetic Package, .6L x .3W x .13H - Contact Factory for Die Availability
` DSCC SMD Pending NOTE: Aeroflex Plainview does not currently have a DSCC Certified Radiation Hardened Assurance Program


Pinout

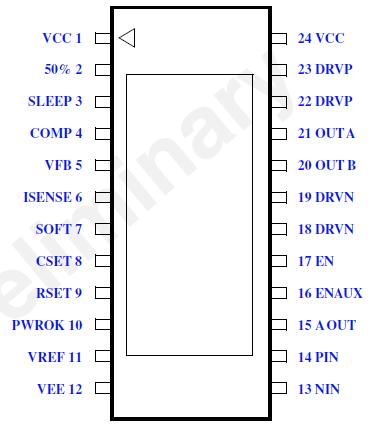

Connection Diagram


Specifications

Junction Temperature Range
-55 to +150
Storage Temperature Range
-65 to +150
VCC & DRVP Supply Voltages
7.0VDC
Steady State Output Current
±50mA
Peak Output Current (Internally Limited)
±1.0A
Analog Inputs (Pins 5, 6, 13, 14)
VEE - 0.5V to VCC+0.5V
Power Dissipation at TA = +25
500mW
Lead Temperature (soldering, 10 seconds)
300

Note 1: All voltages are with respect to Pin 12. All currents are positive into the specified terminal.
