PV870

Features: • F2MC-8L family CPU core• Dual-clock control system• Maximum memory space: 64 Kbytes• Minimum execution time: 0.4 ms/10 MHz• Interrupt processing time: 3.6 ms/10 MHz• I/O ports: max. 45 channels• 21-bit timebase timer• 8-bit PWM timer: 1 c...

product image

PV870 Picture
See larger image
SeekIC No. : 004467179 Detail

PV870: Features: • F2MC-8L family CPU core• Dual-clock control system• Maximum memory space: 64 Kbytes• Minimum execution time: 0.4 ms/10 MHz• Interrupt processing time: 3.6 m...

PV870 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PV870
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• F2MC-8L family CPU core
• Dual-clock control system
• Maximum memory space: 64 Kbytes
• Minimum execution time: 0.4 ms/10 MHz
• Interrupt processing time: 3.6 ms/10 MHz
• I/O ports: max. 45 channels
• 21-bit timebase timer
• 8-bit PWM timer: 1 channel, 1 output channel
• 8/16-bit timer/counter: 2 channels (16 bits ´ 1 channel)
• 8-bit serial I/O: 1 channel
• 10-bit A/D converter: 8 channels
• OP amp: 4 channels
• External interrupt (wake-up function): 8 channels


Pinout

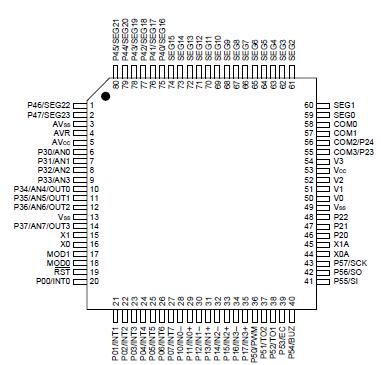

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remarks
Min Max
Power supply voltage VCC
AVCC		 VSS 0.3 VSS + 7.0 V
A/D converterreference inputvoltage AVR VSS 0.3 VSS + 7.0 V
LCD power supply voltage V0 to V3 VSS 0.3 VSS + 7.0 V V0 to V3 must not exceed VCC.
Input voltage VI VSS 0.3 VCC + 0.3 V
Output voltage VO VSS 0.3 VCC + 0.3 V
"L" level output current IOL   20 mA
"L" level average output current IOLAV   4 mA Average value (operating
current ´ operating rate)
"L" level total maximum output current IOL   100 mA
"L" level total average outputcurrent IOLAV   40 mA Average value (operating
current ´ operating rate)
"H" level output current IOH   20 mA
"H" level average output current IOHAV   4 mA Average value (operating
current ´ operating rate)
"H" level total maximum output current IOH   50 mA
"H" level average output
current		 IOHAV   20 mA Average value (operating
current ´ operating rate)
Power consumption PD   300 mA
Operating temperature TA 40 +85 °C
Storage temperature Tstg 55 +150 °C
* : Use AVCC and VCC set at the same voltage. Take care so that AVR does not exceed AVCC + 0.3 V and AVCC does not exceed VCC, such as when power is turned on.


Description

The MB89870 series is a line of single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions such as dual-clock control system, five operating speed control stages, timers, a PWM timer, a serial interface, an A/D converter, an external interrupt, an LCD controller/ driver, and a watch prescaler.
