PUMB13

Features: · Built-in bias resistors· Simplified circuit design· Reduction of component count· Reduced pick and place costs.Application· Low current peripheral drivers· Replacement of general purpose transistors in digital applications· Control of IC inputs.PinoutSpecifications SYMBOL PARAME...

product image

PUMB13 Picture
See larger image
SeekIC No. : 004467144 Detail

PUMB13: Features: · Built-in bias resistors· Simplified circuit design· Reduction of component count· Reduced pick and place costs.Application· Low current peripheral drivers· Replacement of general purpose...

PUMB13 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PUMB13
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Built-in bias resistors
· Simplified circuit design
· Reduction of component count
· Reduced pick and place costs.


Application

· Low current peripheral drivers
· Replacement of general purpose transistors in digital applications
· Control of IC inputs.


Pinout

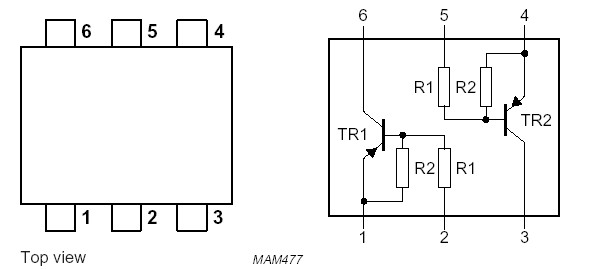

Connection Diagram


Specifications

SYMBOL PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
Per transistor; for the PNP transistor with negative polarity
VCBO collector-base voltage
open emitter
-
-50
V
VCEO collector-emitter voltage
open base
-
-50
V
VEBO emitter-base voltage
open collector
-
-5
V
Vi input voltage
positive
negative
-
-
+5
30
V
V
IC collector current (DC)
-
-100
mA
ICM peak base current
-
100
mA
Ptot total power dissipation
SOT363
SOT666
Tamb 25 °C;
note 1
notes 1 and 2
-
-
200
200
mW
MW
Tstg storage temperature
-65
+150
°C
Tj junction temperature
-
150
°C
Tamb operating ambient temperature
-65
+150
°C
Per device
Ptot total power dissipation
SOT363
SOT666
Tamb25 °C;
note 1
notes 1 and 2
-
-
300
300
mW
MW
Notes
1. Device mounted on an FR4 printed-circuit board, single-sided copper, standard footprint.
2. Reflow soldering is the only recommended soldering method.


Description

PNP/PNP resistor-equipped transistors (see "Simplified outline, symbol and pinning" for package details). PUMB13
