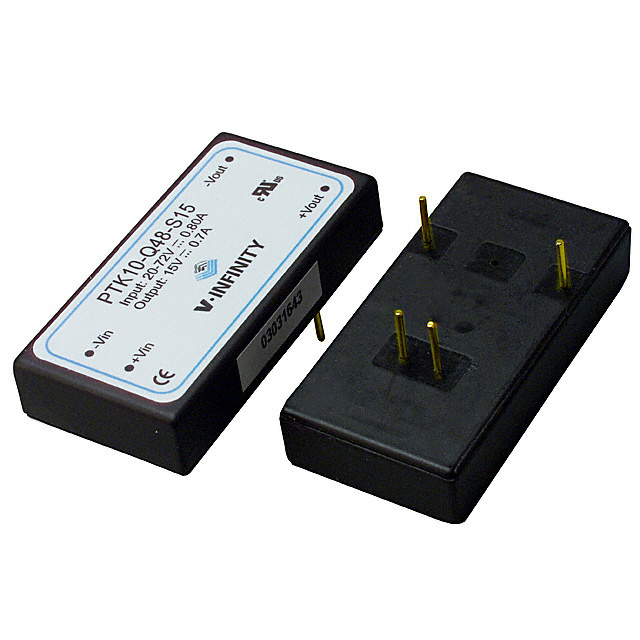

See larger image

SeekIC No. : 003804546 Detail

PTK10-Q48-S15: CONVERTER DC/DC 15V OUT 10.5W

PTK10-Q48-S15 Data Sheet

US $ 15.07~15.07 / Piece | Get Latest Price

Part Number:: PTK10-Q48-S15
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~500

Unit Price
$15.07

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PTK10-Q24-D12 evaluate
US $16.19 - 16.19 / Piece

CONVERTER DC/DC +/-12V OUT 10.8W
PTK10-Q24-D15 evaluate
US $15.66 - 22.37 / Piece

CONVERTER DC/DC +/-15V OUT 10.5W
PTK10-Q24-D5 evaluate
US $13.89 - 17.89 / Piece

CONVERTER DC/DC +/-5V OUT 10W

Product Details

Quick Details

Series:	V-Infinity PTK10	Manufacturer:	CUI Inc
Type:	Isolated	Number of DAC Outputs :	2
Number of Outputs:	1	Voltage - Input (Min):	20V
Voltage - Input (Max):	72V	Voltage - Output 1:	15V
Voltage - Output 2:	-	Voltage - Output 3:	-
Current - Output (Max):	700mA	Power (Watts) - Manufacture Series:	10W
Voltage - Isolation:	500V	Features:	-
Mounting Type:	Through Hole	Package / Case:	5-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)	Packaging:	-
Operating Temperature:	-20°C ~ 71°C

Description

Manufacturer: CUI Inc
Type: Isolated
Number of Outputs: 1
Voltage - Output 2: -
Voltage - Output 3: -
Features: -
Voltage - Output 1: 15V
Mounting Type: Through Hole
Efficiency: 85%
Packaging: -
Package / Case: 5-DIP Module
Power (Watts) - Manufacture Series: 10W
Voltage - Input (Max): 72V
Voltage - Input (Min): 20V
Voltage - Isolation: 500V
Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Operating Temperature: -20°C ~ 71°C
Current - Output (Max): 700mA
Series: V-Infinity PTK10

Parameters:

Technical/Catalog Information	PTK10-Q48-S15
Vendor	CUI Inc
Category	Power Supplies
Voltage - Input	20 ~ 72V
Output	15V
Power (Watts)	10.5W
Number of Outputs	1
1st Output	15 VDC @ 700mA
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	-
Package / Case	Module
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PTK10 Q48 S15 PTK10Q48S15 102 1234 ND 1021234ND 102-1234
