PT8R1002

Features: • Class 2 and 3 (up to 10 meter range) compliant with Bluetooth Specification 1.1• Fully integrated single-chip transceiver with onchip PLL, VCO, LNA, up/down converter, and digital GFSK modem• Seamless interface to BlueRF RXMODE2 with unidirectional / JTAG serial inter...

product image

PT8R1002 Picture
See larger image
SeekIC No. : 004466663 Detail

PT8R1002: Features: • Class 2 and 3 (up to 10 meter range) compliant with Bluetooth Specification 1.1• Fully integrated single-chip transceiver with onchip PLL, VCO, LNA, up/down converter, and di...

PT8R1002 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT8R1002
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Class 2 and 3 (up to 10 meter range) compliant
   with Bluetooth Specification 1.1
• Fully integrated single-chip transceiver with onchip
   PLL, VCO, LNA, up/down converter, and
   digital GFSK modem
• Seamless interface to BlueRF RXMODE2 with
   unidirectional / JTAG serial interface or
   bidirectional / DBUS serial interface
• Up to -90dBm receiver sensitivity
• Superior adjacent channel selectivity of -6 at 1MHz
   offset
• Support dual reference clock frequency: 13/16MHz
• Bluetooth BQB QPL qualified - ID = B00992


Application

• ISM 2.4GHz wireless systems
• Mobile phones and Handset


Pinout

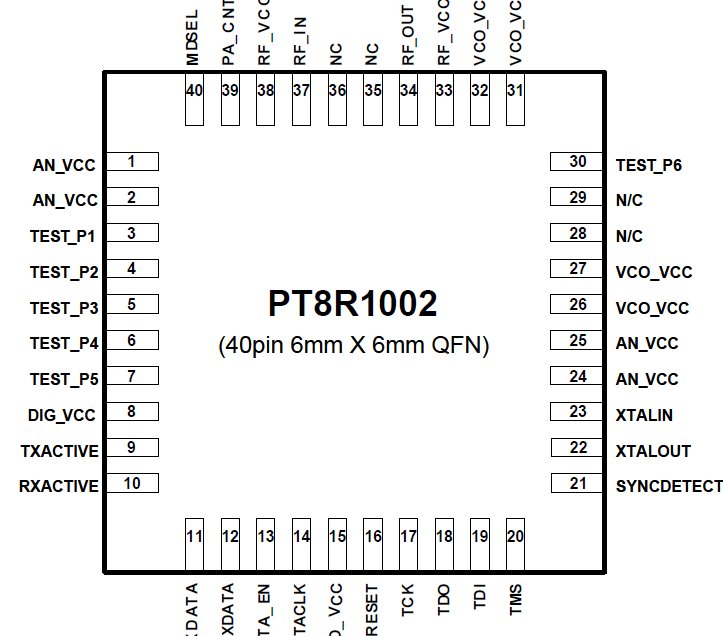

Connection Diagram


Description

The PT8R1002 is a part of the PTI Bluetooth product family. It is a short-range microwave-frequency radio transceiver for Bluetooth links that operates in the
2.4 GHz to 2.5 GHz ISM band. The device consists of a fully integrated 2.4 GHz radio transceiver with GFSK modem. This radio IC is based on PTI's proprietary radio architecture employing direct conversion scheme, which offers superior channel selectivity, and is implemented in CMOS technology, which provides low cost integrated RF and baseband solutions for Bluetooth applications.

The PT8R1002 incorporates the complete receive and transmit components including PLL, VCO, LNA, up/ down converter, channel select filters, and digital
GFSK modem.
