PT8A9701P

Features: The PT8A9701P works as the encoder and thePT8A974P/974LP works as the decoderNine output pins, 5 for forward, backward, left,light and turbo functions, and 3 functional keysOperation power supply for PT8A9701: 3V to 12V with series resistor)Auto power-off if no key pressed (PT8A9701P)Mot...

product image

PT8A9701P Picture
See larger image
SeekIC No. : 004466648 Detail

PT8A9701P: Features: The PT8A9701P works as the encoder and thePT8A974P/974LP works as the decoderNine output pins, 5 for forward, backward, left,light and turbo functions, and 3 functional keysOperation power...

PT8A9701P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT8A9701P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The PT8A9701P works as the encoder and the
PT8A974P/974LP works as the decoder
Nine output pins, 5 for forward, backward, left,
light and turbo functions, and 3 functional keys
Operation power supply for PT8A9701: 3V to 12V with series resistor)
Auto power-off if no key pressed (PT8A9701P)
Motor current limit to meet toy safety standard
HD271 (PT8A974P/974LP) Low operating current
On-chip oscillator with an external resistor
On-chip reversing amplifiers
Built-in 3.7V Zener (Vz) (PT8A974P) and 3.1V
Zener (Vz) (PT8A974LP)
Few external components needed


Pinout

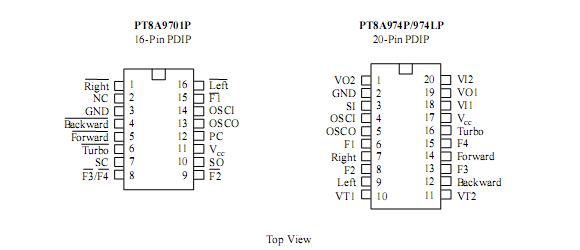

Connection Diagram


Specifications

Storage Temperature....................................................................................................-25 °C to +85 °C
Ambient Temperature with Power Applied ........................................................................0°C to +70° C
Supply Voltage to Ground Potential (Inputs & V ccOnly)........................................................-0.5 to +5.5V
Supply Voltage to Ground Potential (Outputs & D/O Only) ....................................................-0.5 to +5.5V
DC Input Voltage ...................................................................................................................-0.5 to +5.5V
DC Output Current............................................................................................................................ 20mA
Power Dissipation........................................................................................................................... 500mW


Description

   The PT8A9701P and PT8A974P/974LP is a pair of CMOS LSIs designed for remote controlled toy car application. They have eight control keys for controlling the corresponding motion, i.e., forward, backward, left, right, turbo and 3 functional keys, of he remote controlled car. They also have 'Forwar Backward' and 'Turbo!'combination application.
