PT6965

Features: • CMOS Technology• Low Power Consumption• Multiple Display Modes (14 segment, 4 Grid to 11 segment, 7 Grid)• Key Scanning (10 x 2 Matrix)• 8-Step Dimming Circuitry• Serial Interface for Clock, Data Input, Data Output, Strobe Pins and low voltage operat...

product image

PT6965 Picture
See larger image
SeekIC No. : 004466541 Detail

PT6965: Features: • CMOS Technology• Low Power Consumption• Multiple Display Modes (14 segment, 4 Grid to 11 segment, 7 Grid)• Key Scanning (10 x 2 Matrix)• 8-Step Dimming Circ...

PT6965 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT6965
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CMOS Technology
• Low Power Consumption
• Multiple Display Modes (14 segment, 4 Grid to 11 segment, 7 Grid)
• Key Scanning (10 x 2 Matrix)
• 8-Step Dimming Circuitry
• Serial Interface for Clock, Data Input, Data Output, Strobe Pins and low voltage operation ability
when user's MCU power supply is 3.3V.
• Available in 30 pins, SSOP




Application

• Micro-computer Peripheral Device
• VCR set
• Combo set




Pinout

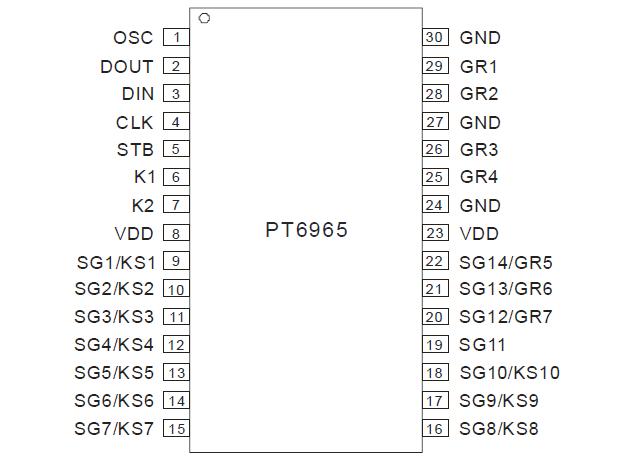

Connection Diagram




Description

PT6965 is an LED Controller driven on a 1/5 to 1/8 duty factor. 11 segment output lines, 4 grid output lines, 3 segment/grid output lines, one display memory, control circuit, key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to PT6965 via a four-line serial interface. Housed in a 30 pins SSOP, PT6965 pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.
