Features:

• CMOS technology
• Low power consumption
• Multiple display modes (12 segment, 6 Grid to 11 segment, 7 Grid)
• Key scanning (10 x 3 Matrix)
• 8-Step dimming circuitry
• Serial interface for clock, data input, data output, strobe pins
• Available in 32-pin, SOP




Application

• Micro-computer peripheral device
• VCR set
• Compo set




Pinout

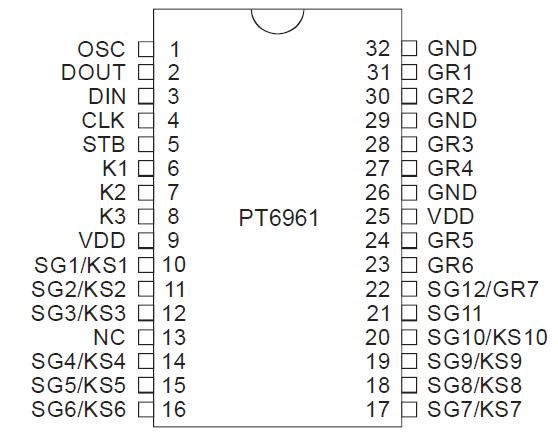

Connection Diagram




Description

PT6961 is an LED Controller driven on a 1/7 to 1/8 duty factor. Eleven segment output lines, six grid output lines, 1 segment/grid output lines, one display memory, control circuit, key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to PT6961 via a four-line serial interface. Housed in a 32-pin SOP,PT6961 pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.
