PT6608

Features: ·CMOS Technology·LCD Driving Voltage: 8 V to 17 V (VDD-VEE)·Power Supply Voltage: +5V + 10 %·LCD Duty: 1/32 to 1/64·Display Data is stored in Display Data RAM from MPU·Provides 64-Channel Output·Available in 100-Pin, QFP Package·Output: 64 Channel for LCD Driving·Input: 8 Bits Parallel D...

product image

PT6608 Picture
See larger image
SeekIC No. : 004466500 Detail

PT6608: Features: ·CMOS Technology·LCD Driving Voltage: 8 V to 17 V (VDD-VEE)·Power Supply Voltage: +5V + 10 %·LCD Duty: 1/32 to 1/64·Display Data is stored in Display Data RAM from MPU·Provides 64-Channel ...

PT6608 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT6608
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·CMOS Technology
·LCD Driving Voltage: 8 V to 17 V (VDD-VEE)
·Power Supply Voltage: +5V
+ 10 %
·LCD Duty: 1/32 to 1/64
·Display Data is stored in Display Data RAM from MPU
·Provides 64-Channel Output
·Available in 100-Pin, QFP Package
·Output: 64 Channel for LCD Driving
·Input: 8 Bits Parallel Display Data
            Control Signal from MPU
            Splitted Bias Voltage (V0R, V0L, V2R, V2L, V3R, V3L, V5R, V5L)
·Interface: Common Driver--PT6607
                  Segment Driver -- PT6608
                 Controller -- MPU


Application

·Peripheral Device


Pinout

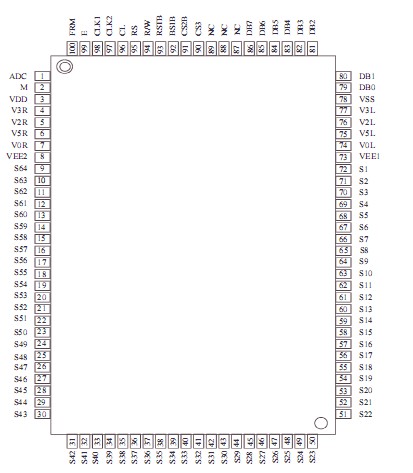

Connection Diagram


Description

PT6608 is a 64 -channel segment driver for dot matrix liquid crystal graphic display system. It utilizes CMOS Technology and provides display RAM, 64-bit data latch, 64 bit drivers and decoder logics. It features the internal display RAM used as storage for the display data which are transferred from an 8-bit microcontroller. It generates the dot matrix liquid crystal driving signals corresponding to the given stored data. Paired with PT6607 (Common Driver IC), PT6608!s pin assignments and application circuit are optimized for easier PC Layout and cost saving advantages.
