PT6601

Features: `CMOS Technology`Supports Display Duties from 1/64 to 1/256`Operating Supply Voltage: VDD (Logic Block): 5V + 10% VDD -VEE (LCD Block): 12 to 32 V `Operating Temperature: -20 to +75`Supports Power Reduction in Large Scale Panel via a Chip Disable Pin`LCD Drive Circuit for 80 bits Display...

product image

PT6601 Picture
See larger image
SeekIC No. : 004466498 Detail

PT6601: Features: `CMOS Technology`Supports Display Duties from 1/64 to 1/256`Operating Supply Voltage: VDD (Logic Block): 5V + 10% VDD -VEE (LCD Block): 12 to 32 V `Operating Temperature: -20 to +75`Suppor...

PT6601 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT6601
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`CMOS Technology
`Supports Display Duties from 1/64 to 1/256
`Operating Supply Voltage:
    VDD (Logic Block): 5V + 10%
    VDD -VEE (LCD Block): 12 to 32 V
`Operating Temperature: -20 to +75
`Supports Power Reduction in Large Scale Panel via a Chip Disable Pin
`LCD Drive Circuit for 80 bits Display
`4 -Bit Parallel Data Input
`Maximum of 6.0 MHz Data Transfer Clock and Bidirectional Shifting Supported
`Available in C.O.B.  or 100-pin, QFP Package


Application

· Peripheral Device


Pinout

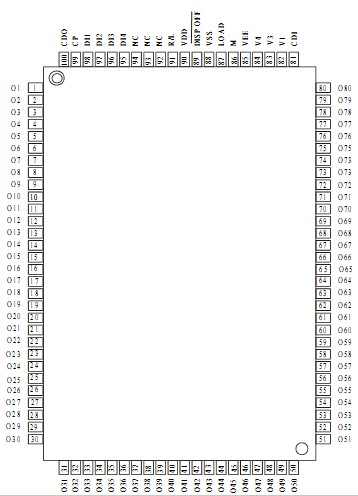

Connection Diagram


Description

PT6601 is a Segment Driver LCD Driver IC utilizing CMOS Technology used for Large Scale Dot Matrix Liquid Crystal Graphic Displays. 80 bits of display data sent from a controller are latched using a 4-bit parallel transfer technique and LCD drive signals are generated. It can be used with Common LCD Driver, PT6630 to drive Large Screen LCD Panels.
