PT6596

Features:

· CMOS Technology
· Up to 32 Segment Output Drivers
· Up to 3 Common Output Drivers
· 1/3 Duty Display
· 1/2 or 1/3 Bias can be selected for LCD Power Supply


Application

· Multi-Media Portable Terminal
· P.O.S. Terminal
· ECR Terminal
· Short Wave Radio
· Telephone
· Camera
· VCR
· Movie Projector
· Car Audio System

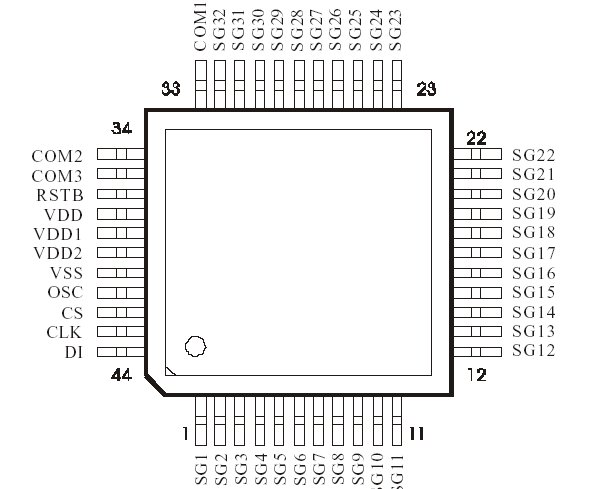

Pinout




Description

PT6596 is a picture cell driver for STN utilizing CMOS Technology having 1/3 duty display. It provides up to 32 segments and 3 commons, thereby driving up to maximum of 96 cells. Available in 44-pin LQFP package,PT6596 is highly suitable for portable terminal, household appliances and other related applications. Pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.
