Features:

·Up to 126 Segments Outputs
·Up to 4 General Purpose Output Ports
·Key Input Function (up to 30 Keys)
·1/3 Duty - 1/2 Bias and 1/3 Duty - 1/3 Bias Drive Techniques
·Sleep Mode and all Segments OFF Function
·Direct Display of Display Data without using a Decoder
·On-Chip Voltage-Detection Type Reset Circuit
·RC Oscillation Circuit

Application

·Cellular Phone
·Data Bank, Organizer
·Electronic Dictionary/Translator
·P.D.A.
·P.O.S.
·Information Appliance
·Caller ID
·Pager
·Electronic Equipment with LCD Display

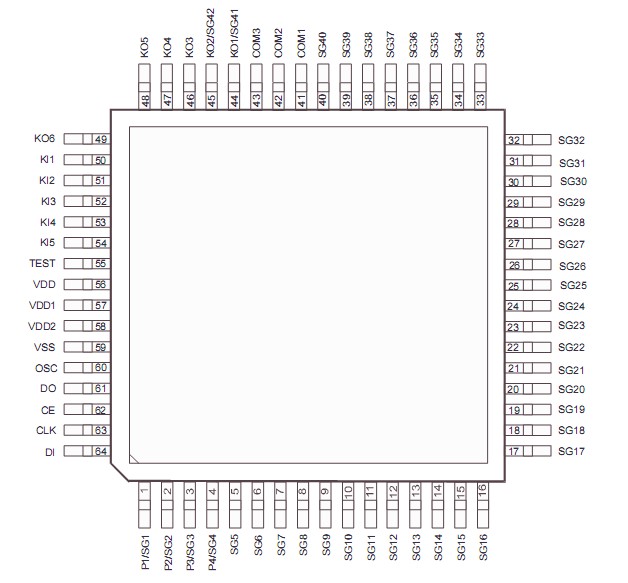

Pinout

Connection Diagram

Description

PT6553 is an LCD Driver IC providing key scan circuitry which can accept up to a maximum of 30 keys, thereby, reducing printed circuit board wiring. It can drive up to 126 segments and is capable of control- ling up to 4 general purpose output ports. The reset circuit provides on-chip voltage detection making it possible to prevent incorrect displays. Pin assignments and application circuit are optimized for easy PCB layout and cost saving advantages.
