PT4810

PHOTO TRANS BLUE LEN 800NM SIDE

product image

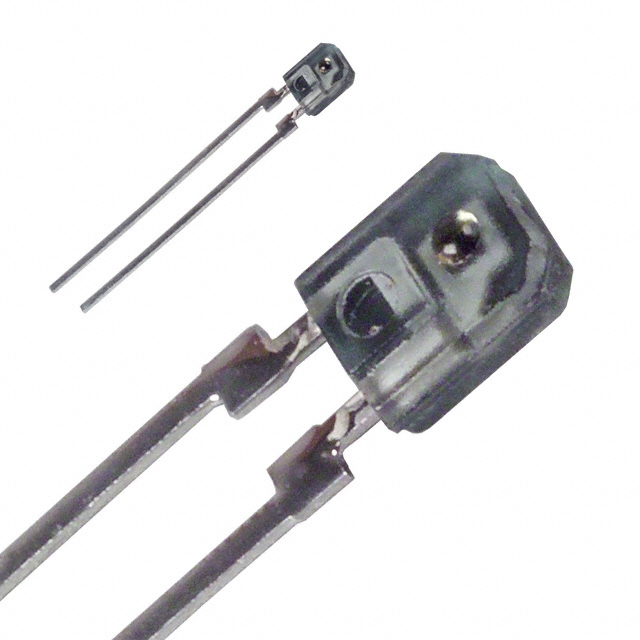

PT4810 Picture
See larger image
SeekIC No. : 004137329 Detail

PT4810: PHOTO TRANS BLUE LEN 800NM SIDE

PT4810 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT4810
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: * Manufacturer: Sharp Microelectronics
Voltage - Collector Emitter Breakdown (Max): 35V Current - Collector (Ic) (Max): 50mA
Current - Dark (Id) (Max): 1mA Wavelength: 800nm
Package / Case : SOIC-32 Wide Viewing Angle: 70°
Power - Max: 75mW Mounting Type: Through Hole
Orientation: Side View

Description

Series: *
Current - Collector (Ic) (Max): 50mA
Mounting Type: Through Hole
Orientation: Side View
Wavelength: 800nm
Power - Max: 75mW
Viewing Angle: 70°
Package / Case: Radial
Voltage - Collector Emitter Breakdown (Max): 35V
Manufacturer: Sharp Microelectronics
Current - Dark (Id) (Max): 1mA


Features:

· Thin type package ( Thickness : 1.5mm )
· Visible light cut-off type :PT4800F/PT4810F/PT4850F
· Single phototransistor output :PT4800/PT4800F/PT4850FDarlington phototransistor output:PT4810/PT4810F
· Thin type



Application

· VCRs
· Floppy disk drives


Specifications

Parameter Symbol Rating Unit
Collector-emitter voltage VCEO 35 V
Emitter-collector voltage VECO 6 V
Collector current PT4800/PT4800F/PT4850F IC 20 mA
PT4810/PT4810F 50
Collector power dissipation PC 75 mW
Operating temperature T opr - 25 to + 85
Storage temperature T stg - 40 to + 85
*1Soldering temperature T sol 260
*1 For 3 seconds at the position of 1.8mm from the bottom face of resin package
